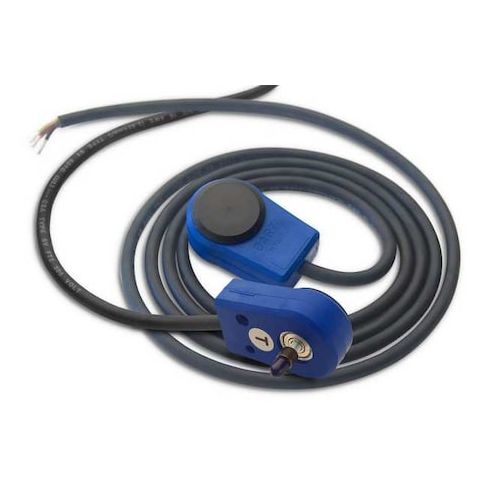

PulseGenerator, 1 Pulse/Rev, 4.5 to 24 VDC MPN:PU-2E
PulseGenerator, 1 Pulse/Rev, 4.5 to 24 VDC
The PulseGenerator from Dart Control is a reliable and accurate pulse generator that provides current sinking square-wave pulses proportional to shaft RPM. Ideal for monitoring and controlling motor speed, it mounts directly to the motor shaft using a #10-32 screw. With a wide input voltage range of 4.5 to 24 VDC and a maximum RPM of 5000, it's perfect for applications such as robotics, automation, and process control. Its compact design and durable construction ensure reliable operation in temperatures from -10 to 45°F. The PulseGenerator is a valuable tool for anyone needing to monitor and control motor speed in a variety of industries.
Top product features:
- Provides Current Sinking Square-wave Pulses
- Frequency Proportional to Shaft RPM of Unit to Which It is Mounted
- Pick-up Mounts with a #10-32 Screw Directly to Motor Shaft Being Monitored
Top product applications:
- Motor Speed Testing
- Tachometer Calibration
- Motor Control Systems
Pulse Generator, Provides Current Sinking Square-wave Pulses with Frequency Proportional to Shaft RPM of Unit to Which It is Mounted, Pick-up Mounts with a #10-32 Screw Directly to Motor Shaft Being Monitored, 1 Pulse per Revolution, Input Voltage 4.5 to 24 VDC, Max RPM 5000, Output Cable Length 6 Ft, 3 Wire 18 AWG, Stainless Steel Ball Bearings, Operating Temp -10 to 45 Degrees F, Molded Santoprene Rubber Housing
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 4.90
- Package Height: 2.50
- Package Weight: 0.40
