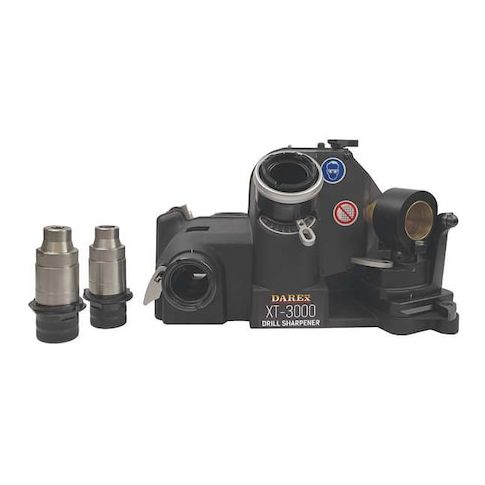

Drill Sharpener XT-3000, Industrial Use MPN:LEX900

The Darex XT-3000 Drill Bit Sharpener (Model LEX900) is a benchtop system designed for precision reconditioning of drill bits sized 1/8 inch to 13/16 inch in diameter. It features a 6-inch Cubic Boron Nitride (CBN) grinding wheel and sharpens point angles between 118° and 150°, compatible with standard conic and split point bits. Powered by a 1/4 HP motor at 115 V and 10 amps, it operates at up to 3,450 RPM for efficient sharpening. The unit has a compact footprint (20" L x 20" D x 16" H) and supports drill bits of at least 2 inches in length with no maximum limit, making it ideal for industrial and commercial use. Manufactured in the USA.

Key Features:

• - Sharpens drill bits from 1/8" to 13/16" diameter
• - 6-inch Cubic Boron Nitride (CBN) grinding wheel for durability
• - Adjustable point angles from 118° to 150° for various bit types
• - Compatible with standard conic and split point drill bits
• - Operates at 3,450 RPM with a 1/4 HP motor and 115 V, 10-amp power supply
• - Supports drill bits with minimum length of 2 inches and unlimited maximum length
• - Compact benchtop design (20" L x 20" D x 16" H) for easy installation
• - Made in the USA
