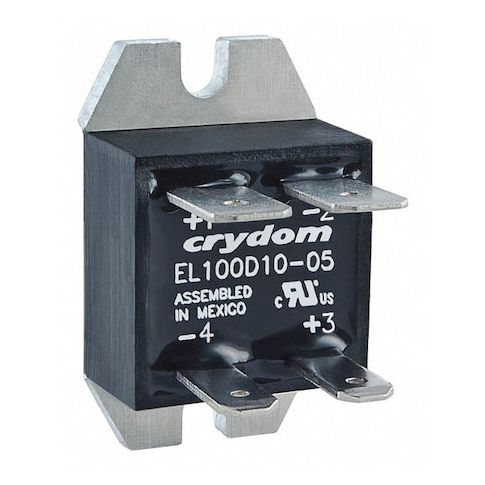

Solid State Relay, 1 Phase, Quick Connect, Panel, MOSFET MPN:EL100D10-05
Solid State Relay, 1 Phase, Quick Connect, Panel, MOSFET
This Solid State Relay from Crydom is a reliable and efficient solution for controlling DC power in a variety of applications. With a quick connect design and heat sink included, it can handle up to 10A of output current. Suitable for use in industrial automation, medical equipment, and renewable energy systems, this relay provides a safe and reliable way to switch DC power. Its compact design and low power consumption make it an ideal choice for a range of applications, from small-scale projects to large-scale industrial installations. It is also CE certified, RoHS compliant, and UL listed for added assurance.
Top product features:
- Quick Connect electrical connection for easy installation
- Heat Sink Included for improved heat dissipation and reliability
- Maximum Output Current of 10 A with Heat Sink for high power applications
Top product applications:
- Motor Control
- Automotive Electrical Systems
- Industrial Automation
Solid State Relay, Electrical Connection Quick-Connect, Heat Sink Included, Input Current 27 mA, Input Voltage 4 to 8V DC, Maximum Output Current with Heat Sink 10 A, Maximum Output Current without Heat Sink 9 A, Output Switching Mode Not Applicable, Output Voltage Range 3 to 100V DC, Standards CE Certified, RoHS Compliant, TUV Certified, UL Listed, Switch Component Type MOSFET, Current Type DC, Finger Safe No, Mounting Style Panel, Switch Configuration Form A, Voltage Type DC Output
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.20
- Package Width: 4.60
- Package Height: 4.90
- Package Weight: 0.25
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Product info last updated on March 16, 2026 3:18pm UTC
Category: Industrial Electrical Controls and Automation
