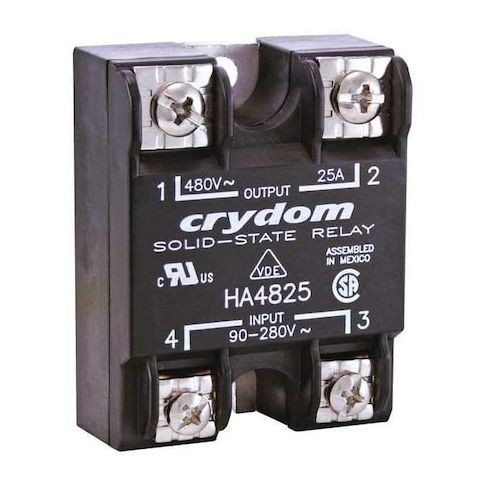

Solid State Relay, 1 Phase, Screw Clamp, Panel, SCR MPN:HA4825E
Solid State Relay, 1 Phase, Screw Clamp, Panel, SCR
The Crydom Solid State Relay is a reliable and efficient solution for a wide range of applications, including motor control, lighting, and HVAC systems. With a maximum output current of 25A and a zero-crossing switching mode, it provides smooth and quiet operation. The relay is also CE compliant, CSA certified, and UL listed, making it suitable for use in commercial and industrial settings. Its compact design and screw clamp electrical connection make it easy to integrate into existing systems, while its high input voltage range and low input current make it energy-efficient and cost-effective.
Top product features:
- Solid State Relay allows for zero crossing output switching, reducing electrical noise and stress on the relay.
- The relay is capable of switching up to 25A of current with a heat sink, and 12A without one.
- The relay is rated for use in AC circuits with a voltage range of 48-530V.
Top product applications:
- Motor Control
- Power Supplies
- Lighting Control
Solid State Relay, Electrical Connection Screw Clamp, Heat Sink Not Included, Input Current 10 mA, Input Voltage 18-36 VAC, Maximum Output Current with Heat Sink 25 A, Maximum Output Current without Heat Sink 12 A, Output Switching Mode Zero Crossing, Output Voltage Range 48 to 530V AC, Standards CE Compliant to EN60950-1, CSA Certified, UL Listed, VDE Approved, Switch Component Type SCR, Current Type AC, Finger Safe No, Mounting Style Panel, Switch Configuration Form A, Voltage Type AC Output
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.90
- Package Height: 3.00
- Package Weight: 0.20
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Product info last updated on February 6, 2026 4:27pm UTC
Category: Industrial Electrical Controls and Automation
