Hoist Ring, Screw-On, 1 in. Bail Dia. MPN:1068050
Hoist Ring, Screw-On, 1 in. Bail Dia.

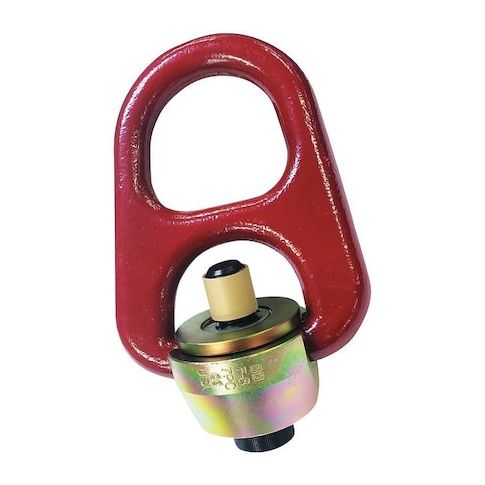

The Crosby Hoist Ring, Screw-On, 1 in. Bail Dia. is a heavy-duty lifting solution designed for demanding applications. With a 10,000 lb working load limit and 360-degree swivel angle, it provides maximum flexibility and stability. Suitable for lifting operations, this alloy steel ring features a removable bolt and black oxide finish for corrosion resistance. Its compact design and 180-degree pivot angle make it ideal for use in confined spaces. Perfect for industries such as construction, manufacturing, and logistics, this hoist ring ensures safe and efficient lifting, reducing the risk of accidents and equipment damage.
Top product features:
- Swivel movement allows for 360-degree rotation
- Pivot angle of 180 degrees enables smooth lifting and maneuvering
- Removable bolt allows for easy installation and removal
Top product applications:
- Material Handling Equipment
- Heavy Duty Lifting Applications
- Industrial Machinery
Hoist Ring, Movement Type Swivel, Material Alloy Steel, Mount Type Screw-On, Working Load Limit 10,000 lb, Thread Size 1 In.-8, Operation Lifting, Pivot Angle 180 Degrees , Swivel Angle 360 Degrees , Usable Thread Length 1 3/8 in, Bail Inside Length 3 1/4 in, Bail Inside Width 3 in, Bail Thickness 1 in, Overall Length 6 1/4 in, Overall Width 6 1/4 in, Hardware Included Removable Bolt, Minimum Installation Torque 230 ft-lb, Finish Black Oxide, Color Red, Standards ASTM A574
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 8.00
- Package Height: 8.00
- Package Weight: 10.90
Product info last updated on April 26, 2026 9:06pm UTC
Category: Lifting, Pulling and Positioning
