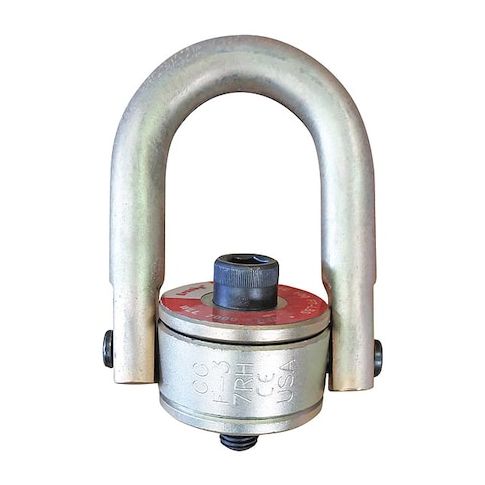

Hoist Ring, 2 1/2"-4 Thread, 50, 000 lb MPN:1017001
Hoist Ring, 2 1/2"-4 Thread, 50, 000 lb
The Crosby Hoist Ring is a heavy-duty swivel ring designed for lifting and rigging applications. With a 50,000 lb working load limit and 360-degree swivel angle, it provides smooth and secure movement in any direction. Its alloy steel construction and zinc-plated finish ensure durability and resistance to corrosion. The ring's screw-on mount and removable bolt make installation and maintenance easy. Ideal for use in construction, manufacturing, and other industries where heavy lifting and rigging are required. The Hoist Ring's versatility and reliability make it a valuable addition to any rigging or lifting operation.
Top product features:
- Swivel movement allows for 360-degree rotation
- Pivot angle of 180 degrees enables smooth lifting and maneuverability
- Usable thread length of 4 inches provides a secure grip on lifting loads
Top product applications:
- Overhead lifting of heavy machinery and equipment
- Heavy-duty rigging and hoisting operations
- Construction and industrial cranes and hoists
Hoist Ring, Movement Type Swivel, Material Alloy Steel, Mount Type Screw-On, Working Load Limit 50,000 lb, Thread Size 2 1/2 In.-4, Operation Lifting, Pivot Angle 180 Degrees , Swivel Angle 360 Degrees , Usable Thread Length 4 in, Bail Inside Length 8 in, Bail Inside Width 5 3/4 in, Bail Thickness 2 1/4 in, Overall Length 11 in, Overall Width 11 in, Hardware Included Removable Bolt, Minimum Installation Torque 2,100 ft-lb, Finish Zinc Plated, Color Gold, Standards ASTM A574
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 6.00
- Package Height: 6.00
- Package Weight: 37.73
Product info last updated on February 24, 2026 7:46am UTC
Category: Lifting, Pulling and Positioning
