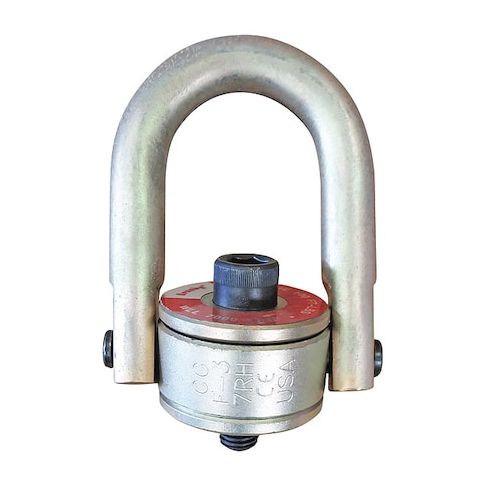

Hoist Ring, 7/8"-9 Thread, 8, 000 lb MPN:1016953
Hoist Ring, 7/8"-9 Thread, 8, 000 lb
The Crosby Hoist Ring is a heavy-duty lifting solution designed for demanding applications. With a working load limit of 8,000 lb and a swivel angle of 360 degrees, this ring provides flexibility and stability in lifting operations. Its alloy steel construction and zinc-plated finish ensure durability and resistance to corrosion. Suitable for use in industries such as manufacturing, construction, and shipping, this hoist ring is ideal for applications where heavy loads need to be lifted and maneuvered with precision. Its compact design and screw-on mount make installation easy, and the removable bolt allows for secure attachment to a hoist or other lifting equipment.
Top product features:
- Movement Type Swivel, allowing for smooth and flexible operation
- Pivot Angle 180 Degrees, enabling secure and controlled lifting
- Swivel Angle 360 Degrees, providing full range of motion and versatility
Top product applications:
- Crane hooks and lifting equipment
- Heavy equipment rigging
- Industrial machinery installation and repair
Hoist Ring, Movement Type Swivel, Material Alloy Steel, Mount Type Screw-On, Working Load Limit 8,000 lb, Thread Size 7/8 In.-9, Operation Lifting, Pivot Angle 180 Degrees , Swivel Angle 360 Degrees , Usable Thread Length 7/8 in, Bail Inside Length 2 7/8 in, Bail Inside Width 3 in, Bail Thickness 15/16 in, Overall Length 4 7/8 in, Overall Width 4 7/8 in, Hardware Included Removable Bolt, Minimum Installation Torque 160 ft-lb, Finish Zinc Plated, Color Gold, Standards ASTM A574
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.80
- Package Width: 5.40
- Package Height: 3.60
- Package Weight: 6.50
Product info last updated on February 5, 2026 8:07am UTC
Category: Lifting, Pulling and Positioning
