Hoist Ring, 3"-4 Thread, 75, 000 lb MPN:1017005
Hoist Ring, 3"-4 Thread, 75, 000 lb

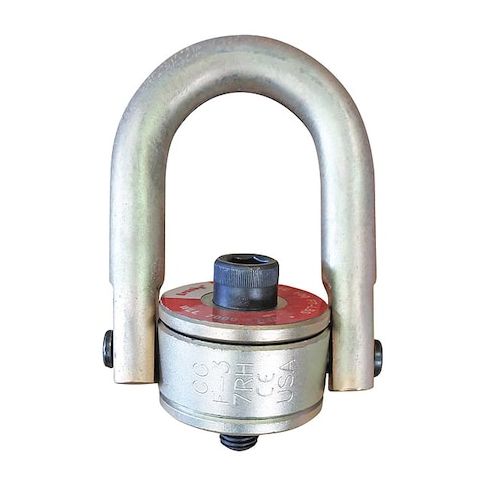

Elevate your lifting operations with the Crosby Hoist Ring, a robust and versatile solution for heavy-duty applications. This 75,000 lb capacity hoist ring features a swivel design, allowing for 360-degree rotation and 180-degree pivot, making it ideal for use in confined spaces or when precise control is required. Constructed from alloy steel and finished with a durable zinc plating, this ring is built to withstand the toughest conditions. Suitable for applications such as construction, manufacturing, and heavy industry, the Crosby Hoist Ring provides reliable and efficient lifting capabilities, minimizing downtime and maximizing productivity.
Top product features:
- Swivel movement allows the hoist ring to pivot 180 degrees, enabling smooth rotation and flexibility in lifting operations.
- 360-degree swivel angle permits unrestricted movement and flexibility in a wide range of lifting applications.
- A removable bolt is included, allowing for easy installation and removal of the hoist ring without damaging the surrounding area.
Top product applications:
- Crane hook attachment for heavy lifting operations
- Heavy equipment rigging for construction and manufacturing
- Industrial lifting and material handling in factories and warehouses
Hoist Ring, Movement Type Swivel, Material Alloy Steel, Mount Type Screw-On, Working Load Limit 75,000 lb, Thread Size 3 In.-4, Operation Lifting, Pivot Angle 180 Degrees , Swivel Angle 360 Degrees , Usable Thread Length 5 in, Bail Inside Length 8 1/2 in, Bail Inside Width 6 1/2 in, Bail Thickness 2 3/4 in, Overall Length 14 1/8 in, Overall Width 14 1/8 in, Hardware Included Removable Bolt, Minimum Installation Torque 4,300 ft-lb, Finish Zinc Plated, Color Gold, Standards ASTM A574
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 48.00
- Package Width: 40.00
- Package Height: 6.50
- Package Weight: 166.00
Product info last updated on March 21, 2026 7:52pm UTC
Category: Lifting, Pulling and Positioning
