Steam Trap, 800F, Stainless Steel, 600 psi MPN:NTD600-N1B9S
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1256534

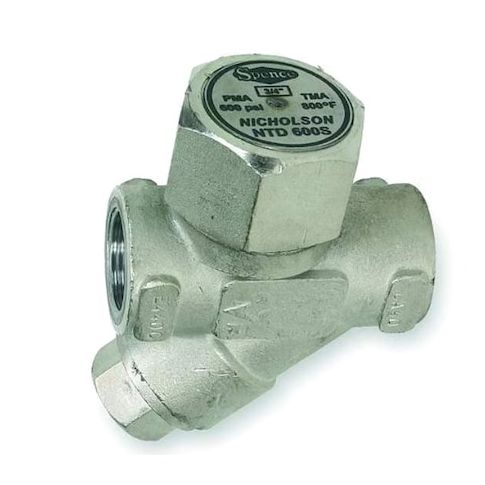

Steam Trap, 800F, Stainless Steel, 600 psi
The Crescent Nicholson Steam Trap is a reliable and efficient solution for managing condensate and air in steam-based systems. Suitable for use in drip legs, steam heating, and steam tracing applications, this stainless steel trap features a high condensate capacity of 1,250 lb/hr and operates at pressures up to 600 psi. Its compact in-line design and included strainer make it easy to install and maintain, reducing downtime and increasing overall system performance. Ideal for various industries, including manufacturing, food processing, and pharmaceuticals, this steam trap provides a long-lasting and cost-effective solution for steam system management.
Top product features:
- In-line configuration allows for easy integration into existing systems.
- Strainer is included to prevent debris and contaminants from entering the trap.
- Stainless steel construction provides resistance to corrosion and high-temperature steam.
Top product applications:
- Drip Legs
- Steam Heating
- Steam Tracing
Steam Trap, Actuator Material Stainless Steel, Application Drip Legs, Steam Heating, Steam Tracing, Body Material Stainless Steel, Cap Material Stainless Steel, Condensate Capacity 1,250 lb/hr, Configuration In-line, Distance Between Inlet and Outlet Port 3 in, Includes Air Vent Air Vent Not Included, Includes Strainer Strainer Included, Installation Orientation Horizontal, Manufacturer Series NTD600, Number of Ports 2, Operating Pressure - Maximum 600 psi, Operating Pressure - Minimum 2 psi
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.40
- Package Width: 3.80
- Package Height: 2.40
- Package Weight: 2.55
Product info last updated on February 14, 2026 10:52am UTC
Category: HVACR and Appliance Controls
