Steam Trap, 800F, Stainless Steel, 600 psi, NPT Outlet: 1/2 in MPN:NTD600-N1C9A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0518445

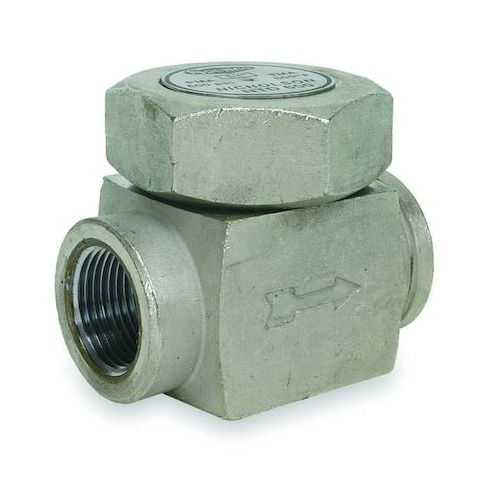

Steam Trap, 800F, Stainless Steel, 600 psi, NPT Outlet: 1/2 in
This high-performance Steam Trap is designed for demanding applications such as drip legs, steam heating, and steam tracing. Built with durable stainless steel, it can withstand extreme temperatures up to 800F and pressures of up to 600 psi. With a condensate capacity of 2,000 lb/hr, it efficiently captures condensate, reducing energy costs and improving system efficiency. Its compact in-line design and easy installation make it ideal for a variety of industries, including chemical processing, power generation, and food processing. Regular maintenance is minimized with the included air vent and strainer, reducing downtime and increasing overall system reliability.
Top product features:
- Stainless Steel construction for resistance to corrosion and durability
- Operates at a maximum pressure of 600 psi to handle high-pressure steam applications
- Has a condensate capacity of 2,000 lb/hr to efficiently manage condensate removal
Top product applications:
- Drip Legs
- Steam Heating
- Steam Tracing
Steam Trap, Actuator Material Stainless Steel, Application Drip Legs, Steam Heating, Steam Tracing, Body Material Stainless Steel, Cap Material Stainless Steel, Condensate Capacity 2,000 lb/hr, Configuration In-line, Distance Between Inlet and Outlet Port 2 11/16 in, Includes Air Vent Air Vent Not Included, Includes Strainer Strainer Not Included, Installation Orientation Horizontal, Manufacturer Series NTD600, Number of Ports 2, Operating Pressure - Maximum 600 psi
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 2.30
- Package Height: 2.30
- Package Weight: 1.35
Product info last updated on February 8, 2026 5:12am UTC
Category: HVACR and Appliance Controls
