Steam Trap, 800F, Stainless Steel, 600 psi MPN:NTD600-N1D9A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0353936

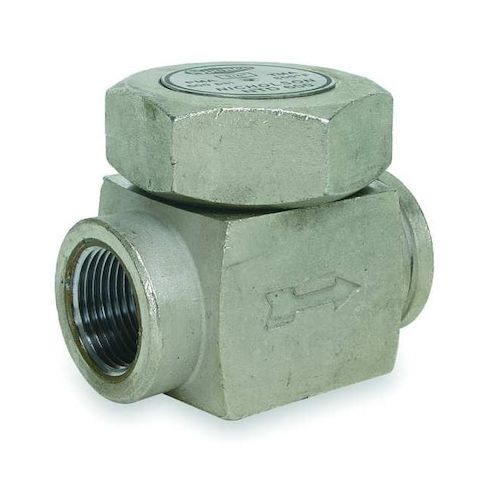

Steam Trap, 800F, Stainless Steel, 600 psi
The Crescent Nicholson Steam Trap is a high-performance solution for managing condensate in industrial applications. Designed for use in drip legs, steam heating, and steam tracing systems, this steam trap features a stainless steel body and cap, ensuring durability and resistance to corrosion. With a condensate capacity of 3,050 lb/hr and a maximum operating pressure of 600 psi, it efficiently handles high-pressure steam systems. Its in-line configuration and horizontal installation orientation make it easy to integrate into existing systems. Ideal for industries such as food processing, pharmaceuticals, and chemical manufacturing, this steam trap provides reliable and efficient condensate management.
Top product features:
- Stainless Steel body and cap provide corrosion resistance
- In-line configuration allows for easy installation in steam systems
- Condensate capacity of 3,050 lb/hr enables efficient condensate removal
Top product applications:
- Steam Heating
- Steam Tracing
- Drip Legs
Steam Trap, Actuator Material Stainless Steel, Application Drip Legs, Steam Heating, Steam Tracing, Body Material Stainless Steel, Cap Material Stainless Steel, Condensate Capacity 3,050 lb/hr, Configuration In-line, Distance Between Inlet and Outlet Port 2 13/16 in, Includes Air Vent Air Vent Not Included, Includes Strainer Strainer Not Included, Installation Orientation Horizontal, Manufacturer Series NTD600, Number of Ports 2, Operating Pressure - Maximum 600 psi
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.60
- Package Width: 2.80
- Package Height: 2.70
- Package Weight: 2.20
Product info last updated on January 23, 2026 9:12am UTC
Category: HVACR and Appliance Controls
