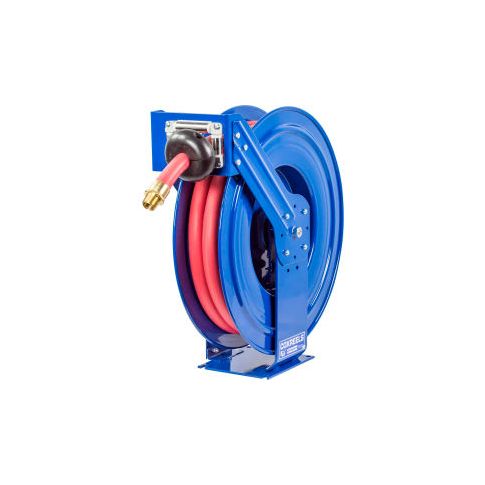

Coxreels TSHF-N-635 1"x 35' 300 PSI Spring Retractable Fuel Delivery Steel Hose Reel TSHF-N-635
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-5050B58
Coxreels TSHF-N-635 1"x 35' 300 PSI Spring Retractable Fuel Delivery Steel Hose Reel
The Coxreels TSHF-N-635 is a heavy-duty, professional-grade fuel delivery reel designed for handling non-aromatic fuels such as diesel, kerosene, fuel oil, and heating oil. Its convenient uncoiling system and hose control enable efficient fuel transfers in utility, ground support, and bulk liquid handling applications. Suitable for mounting on fuel storage and dispensing systems, fuel/lube trucks, aircraft refuelers, and tank trucks, this reel features a solid steel base, precision bearings, and a durable proprietary powder coat process. Ideal for industries such as construction, agriculture, and transportation, it offers a 2-year limited warranty and is made in the USA.
Top product features:
- The product has a 90° full-flow npt swivel inlet for fuel dispensing applications.
- The reel features a heavy-duty CNC robotically spun and ribbed discs with rolled edges for greater strength and safety.
- The reel has a controlled retraction speed up to 80, with a slower speed on EZ-coil models, and a pawl and zinc plated ratchet.
Top product applications:
- Utility
- Ground Support
- Bulk Liquid Handling Transport Services
Coxreels® fuel dispensing reels are designed to handle various non-aromatic fuel applications including diesel kerosene fuel oil and heating oil. Coxreels® professional fuel dispensing reels are available in heavy-duty single pedestal (sh series) supreme-duty dual pedestal (t series) or box-style frame (sp series) configurations. These fuel reels are an essential component found in utility ground support and bulk liquid handling transport services mounted on fuel storage & dispensing systems fuel/lube trucks aircraft refuelers and tank trucks. The convenient uncoiling systems with the added hose control allow the operator to efficiently handle fuel transfers. Machined from solid brass 90° full-flow npt swivel inlet for fuel dispensing applications. Electroless nickel plated steel swivel on 1" models swivel seals nitrile sturdy single pedestal reel features coxreels' exclusive super hub™ dual axle support system guide arm adjusts to wall floor vehicle & overhead positions solid one piece heavy gauge 1/4" steel base & support post for maximum stability 1" solid steel axle & lubricated precision bearings for smooth rotation controlled retraction speed up to 80 slower on ez-coil® models pawl & zinc plated ratchet. Multi-position lock ratchet mechanism secures hose at desired length features ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" professional grade heavy duty steel construction. Durable proprietary cpc™ powder coat process. Rolled edges & ribbed discs provide strength & safety. Leading 2-year manufacturer's limited warranty. Made in the u.S.A. - sold & supported worldwide swivel - machined from zinc plated steel. 90° full-flow npt swivel for fuel dispensing applications. Cartridge motor - lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.. Cnc spun discs - heavy duty cnc robotically spun and ribbed discs with rolled edges for greater str
Additional Information
- UPC: 674255721968
- UNSPSC: 40142014
- Brand: Coxreels Inc
- Color: Blue
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: SO
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 27.00
- Package Width: 25.00
- Package Height: 13.00
- Package Weight: 95.00
Product info last updated on March 26, 2026 12:57am UTC
Category: Hose and Cord Reels
