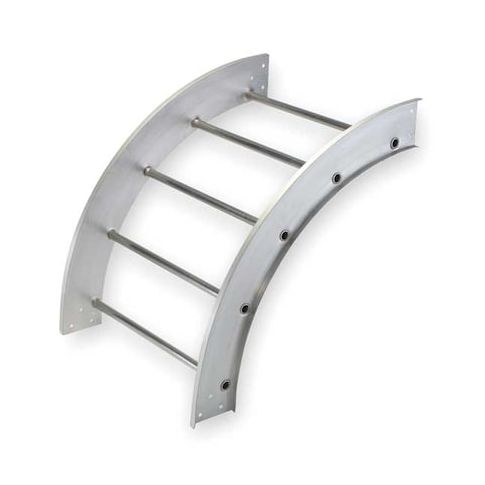

90 Degree Outside Vertical Elbow, 100 lb, 75 lb Capacity, Aluminum, Unfinished MPN:248-249O-24
90 Degree Outside Vertical Elbow, 100 lb, 75 lb Capacity, Aluminum, Unfinished
This 90-degree outside vertical elbow is a versatile and reliable component for ladder tray systems. Designed for use with 24-inch ladder trays, it efficiently changes direction up in a vertical plane, allowing for seamless integration into various applications. Made from durable aluminum, it boasts a 100-pound capacity, with a 75-pound working load, and meets NEMA VE1 standards. The elbow includes a splice plate for easy installation and is available in an unfinished finish. Ideal for use in industrial, commercial, and residential settings, this elbow is perfect for tray widths of 24 inches, offering a reliable and efficient solution for ladder tray systems.
Top product features:
- Changes direction up in a vertical plane
- Includes a splice plate
- Has a bend radius of 24 inches
Top product applications:
- Changes Direction Up in a Vertical Plane
- For Use With 24 in Ladder Trays 2HCL3 and 2HCL5
- Changes Direction in a Vertical Plane
90 Degree Outside Vertical Elbow, For Tray Width 24 in, Width 2 ft, Height 24 in, Length 29 1/4 in, Material Aluminum, Includes Splice Plate, Application Changes Direction Up in a Vertical Plane, Bend Radius 24 in, For Use With 24 in Ladder Trays 2HCL3 and 2HCL5, Finish Unfinished, Standards NEMA VE1, Capacity 100 lb, 75 lb, Load Depth 4 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 41.40
- Package Width: 25.80
- Package Height: 12.30
- Package Weight: 8.23
Product info last updated on January 15, 2026 5:26am UTC
Category: Cable Management and Conduit
