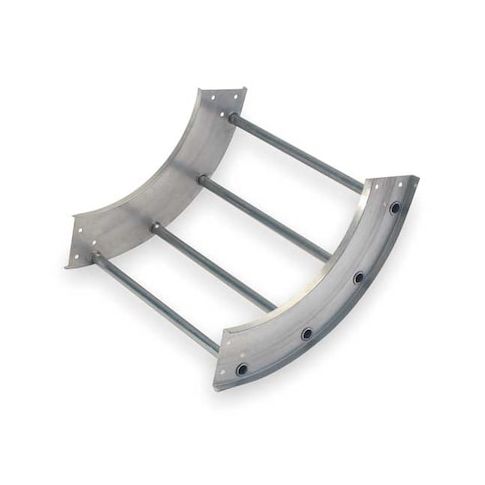

90 Degree Inside Vertical Elbow, 100 lb, 75 lb Capacity, Aluminum, Unfinished MPN:248-249I-24
90 Degree Inside Vertical Elbow, 100 lb, 75 lb Capacity, Aluminum, Unfinished
Elevate your vertical tray systems with our 90 Degree Inside Vertical Elbow, designed for seamless changes in direction. Made from durable aluminum, this elbow is perfect for use with 24 in ladder trays, such as the 2HCL3 and 2HCL5 models. With a capacity of 100 lb and a load depth of 4 in, it can handle a variety of applications. The elbow's compact design and NEMA VE1 standards ensure efficient installation and reliable performance. Ideal for use in industrial settings, this elbow provides a secure and efficient way to manage ladder tray systems, reducing the risk of accidents and improving overall productivity.
Top product features:
- 90 Degree Inside Vertical Elbow changes direction down in a vertical plane
- Includes a splice plate for secure connections
- Has a 24 in bend radius for easy tray installation
Top product applications:
- Changes direction down in vertical plane
- For use with 24 in ladder trays 2HCL3 and 2HCL5
- Includes splice plate
90 Degree Inside Vertical Elbow, For Tray Width 24 in, Width 2 ft, Height 24 in, Length 29 1/4 in, Material Aluminum, Includes Splice Plate, Application Changes Direction Down in Vertical Plane, Bend Radius 24 in, For Use With 24 in Ladder Trays 2HCL3 and 2HCL5, Finish Unfinished, Standards NEMA VE1, Capacity 100 lb, 75 lb, Load Depth 4 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 41.40
- Package Width: 25.80
- Package Height: 12.20
- Package Weight: 8.44
Product info last updated on March 2, 2026 1:46am UTC
Category: Cable Management and Conduit
