FT 1330-35 RS UNF

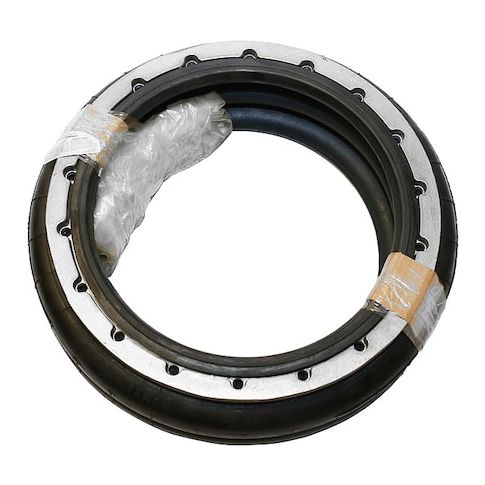

The Continental FT 1330-35 RS UNF Triple Convolution Air Actuator is a high-performance solution for heavy-duty applications. Designed for use in industries such as manufacturing, logistics, and construction, this air actuator provides exceptional load capacity and reliability. With a maximum dynamic load capacity of up to 33,000 lbf at 120 psi, it can handle even the most demanding tasks. The triple convoluted air spring ensures smooth operation and long lifespan, while the natural rubber air spring material provides excellent durability. Ideal for use in applications such as presses, machinery, and material handling systems, this actuator is a reliable choice for heavy-duty operations.
Top product features:
- Triple Convolution Air Actuator design provides increased load capacity and stability.
- Air Spring made from Natural Rubber allows for durability and resistance to wear and tear.
- Air Inlet Thread Size of 3/8 in and Thread Type of UNF enable easy connection and secure attachment.
Top product applications:
- Heavy Duty Truck Suspension
- Industrial Equipment Mounting
- Heavy Duty Trailer Axle Support
Triple Convolution Air Actuator, Air Inlet Location Not Applicable, Air Inlet Thread Size 3/8 in, Air Inlet Thread Type UNF, Air Spring Material Natural Rubber, Air Spring Type Triple Convoluted, Compressed Diameter - Maximum 20.51 in, Height - Compressed 6 in, Height - Full Stroke 15 in, Installation Space Required 22.44 in, Maximum Dynamic Load Capacity 11300 lbf @ 40 psi, 16700 lbf @ 60 psi, 22100 lbf @ 80 psi, 27700 lbf @ 100 psi, 33000 lbf @ 120 psi
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 120 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 24.00
- Package Width: 21.00
- Package Height: 8.00
- Package Weight: 32.34
Product info last updated on February 6, 2026 6:10pm UTC
Category: Automotive Brakes, Steering and Suspension
