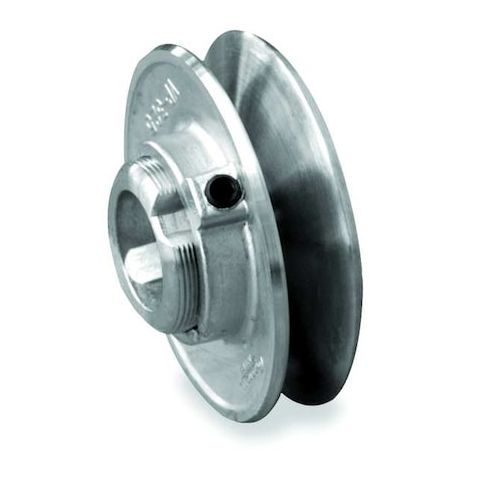

5/8 in Fixed Bore 1 Groove Variable Pitch V-Belt Pulley 3.25 in OD MPN:VP325X062KW
5/8 in Fixed Bore 1 Groove Variable Pitch V-Belt Pulley 3.25 in OD
This 5/8 in Fixed Bore 1 Groove Variable Pitch V-Belt Pulley is designed for use with classical V-belts in various trade sizes, including 3L, 4L, and 5L. Its variable pitch design allows for flexible belt installation and adjustment, while the zinc material provides durability and resistance to corrosion. Suitable for applications in power transmission, conveyor systems, and industrial machinery, this pulley offers a reliable and efficient solution for belt-driven systems. With its compact 3.25 in outside diameter and adjustable pitch range, it can be easily integrated into a wide range of equipment and machinery configurations.
Top product features:
- Fixed bore design allows for secure attachment of pulley to shaft
- Variable pitch design enables adjustment of belt tension and pitch to match changing system requirements
- One groove design provides a single path for the V-belt to ride on, reducing wear and increasing efficiency
Top product applications:
- Power transmission system
- Conveyor belt drive
- Machine tool power transmission
Variable Pitch V-Belt Pulley, Bore Diameter 5/8 in, For Belt Trade Size 3L, 4L, 5L, A, B, For V-Belt Type Classical, Material Zinc, Maximum Pitch Diameter 2.60 in (3L), 3.10 in (4L), 3.20 in (5L), Number of Grooves 1, Outside Diameter 3.25 in, Set Screw Location On Keyway, 3L Pitch Diameter (Maximum) 2.6 in, 3L Pitch Diameter (Minimum) 1.8 in, 4L Pitch Diameter (Maximum) 3.1 in, 4L Pitch Diameter (Minimum) 2.1 in, 5L Pitch Diameter (Maximum) 3.2 in, 5L Pitch Diameter (Minimum) 2.4 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.30
- Package Width: 1.70
- Package Height: 3.30
- Package Weight: 0.95
Product info last updated on March 2, 2026 11:10am UTC
Category: Bearings, V-belts and Power Transmission Equipment
