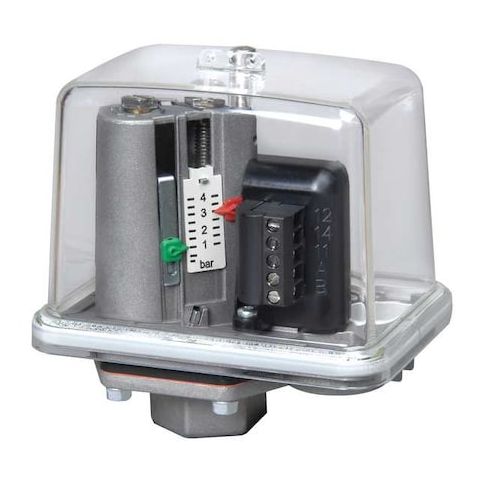

Pressure Switch, Standard, SPDT, 1/4" NPT, 4.4 to 145 psi Range MPN:MDR-F 10H-S E4
Pressure Switch, Standard, SPDT, 1/4" NPT, 4.4 to 145 psi Range
This pressure switch is a reliable and versatile solution for a wide range of applications, including industrial and commercial settings. Its standard SPDT configuration and 1/4in NPT connection make it easy to integrate into various systems. The switch offers a wide measurement range of 4.4 to 145 psi, with a differential range of 5.8 to 138 psi, allowing for precise monitoring and control. Its factory on/off setting and adjustable actuation make it suitable for use in applications such as pump control, valve actuation, and alarm systems, providing reliable and efficient operation.
Top product features:
- SPDT (Single Pole Double Throw) switch provides a simple on/off functionality
- Differential pressure range of 5.8 to 138 psi allows for precise control over pressure levels
- Diaphragm actuation type enables a sensitive and reliable response to pressure changes
Top product applications:
- Pressure Switch, Standard, SPDT, 1/4in NPT, 4.4 to 145 psi Range is suitable for use in HVAC systems to control fan operation based on pressure changes.
- The Differential Pressure Switch can be used in industrial applications such as monitoring and controlling air flow in ventilation systems.
- This product can be used in laboratory settings to control and monitor pressure in various equipment and systems.
Pressure Switch, Manual Switch Action Auto/Off/Reset, NEMA Rating 1, Series MDR-F, HP @ 1 Phase - 120V 1/2, Temp. Range -40 Degrees to 160 Degrees F, Standards CSA C22.2, DIN 40 050/IEC 529, UL 508, Special Features Buna-N Diaphragm, Clear Cover, Pressure Scale, Control Circuit, Burst Pressure Greater than 4X Maximum Operating Pressure, AC Contact Rating 15 A @ 250 V
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.40
- Package Width: 4.40
- Package Height: 3.40
- Package Weight: 1.10
Product info last updated on February 13, 2026 8:28am UTC
Category: Industrial Electrical Controls and Automation
