ISCC-100-100-KW One-Piece Industry Standard Clamping Coupling with Keyway MPN:ISCC-100-100-KW
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7261782

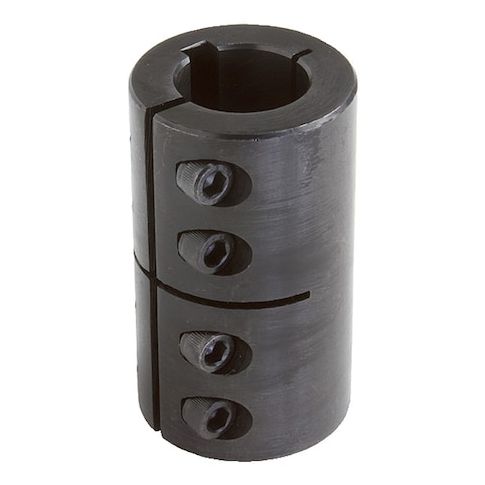

ISCC-100-100-KW One-Piece Industry Standard Clamping Coupling with Keyway
The ISCC-100-100-KW One-Piece Industry Standard Clamping Coupling with Keyway from Climax Metal is a reliable and efficient solution for connecting shafts in a wide range of applications. Its one-piece construction and clamp-on shaft locking type ensure secure and easy installation, while its carbon steel material provides durability and resistance to wear and tear. With a maximum torque of 2,470 in-lb and a maximum speed of 4,000 RPM, this coupling is suitable for use in high-speed and high-torque applications, such as in the aerospace, automotive, and industrial equipment industries. It is ideal for use in applications where precise shaft alignment is critical.
Top product features:
- Rigid Shaft Coupling design allows for secure connection between two shafts
- Round Keyed Bore Type provides a precise fit for keyed shafts
- Clamp On Shaft Locking Type enables easy installation and adjustment
Top product applications:
- Power transmission in machinery
- Automotive applications
- High-speed equipment assembly
Rigid Shaft Coupling, Bore Diameter 1 1 in, Bore Diameter 2 1 in, Bore Type Round Keyed, Clearance Diameter 2.06 in, Coupling Construction One-Piece, Coupling Material Carbon Steel, Coupling Outside Diameter 1 3/4 in, Different Bore Sizes No, Keyway Depth 1 1/8 in, Keyway Depth 2 1/8 in, Minimum Bore Diameter 1 in, Keyway Width 1 1/4 in, Keyway Width 2 1/4 in, Maximum Bore Diameter 1 in, Maximum Speed 4,000 RPM, Maximum Torque 2,470 in-lb, Overall Length 3 in, Shaft Locking Type Clamp On
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.10
- Package Width: 1.80
- Package Height: 1.80
- Package Weight: 1.20
