ISCC-087-087-KW One-Piece Industry Standard Clamping Coupling with Keyway MPN:ISCC-087-087-KW
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7252585

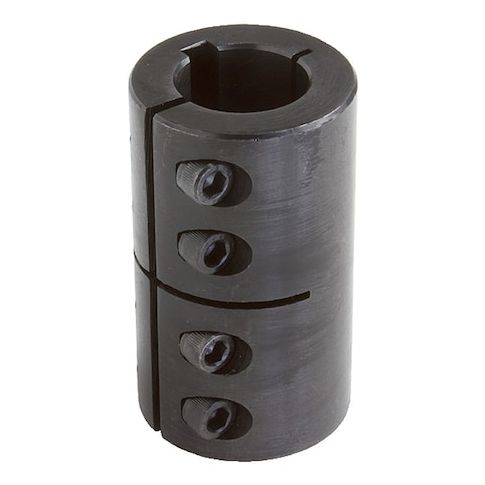

ISCC-087-087-KW One-Piece Industry Standard Clamping Coupling with Keyway
The ISCC-087-087-KW One-Piece Industry Standard Clamping Coupling with Keyway is a rigid shaft coupling designed for high-performance applications. Its one-piece construction ensures maximum strength and durability, while the carbon steel material provides excellent resistance to wear and corrosion. Suitable for use in a variety of industries, including manufacturing, automation, and power transmission, this coupling is ideal for applications requiring high torque and speed. With a maximum speed of 4,000 RPM and a maximum torque of 2,160 in-lb, it is perfect for demanding tasks such as machinery and equipment assembly, and can be easily integrated into existing systems.
Top product features:
- Rigid shaft coupling design allows for secure and stable connection between two shafts.
- Keyway design enables the use of a key to transmit torque between connected shafts.
- Maximum speed of 4,000 RPM allows for high-speed applications.
Top product applications:
- Pneumatic or hydraulic systems where high torque and speed are required
- High-speed machinery such as pumps, compressors, and gearboxes
- Applications where a rigid shaft coupling is necessary for precision and accuracy
Rigid Shaft Coupling, Bore Diameter 1 7/8 in, Bore Diameter 2 7/8 in, Bore Type Round Keyed, Clearance Diameter 1.94 in, Coupling Construction One-Piece, Coupling Material Carbon Steel, Coupling Outside Diameter 1 5/8 in, Different Bore Sizes No, Keyway Depth 1 3/32 in, Keyway Depth 2 3/32 in, Minimum Bore Diameter 7/8 in, Keyway Width 1 3/16 in, Keyway Width 2 3/16 in, Maximum Bore Diameter 7/8 in, Maximum Speed 4,000 RPM, Maximum Torque 2,160 in-lb, Overall Length 2 1/2 in
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.63
- Package Width: 1.63
- Package Height: 2.50
- Package Weight: 0.96
Product info last updated on February 10, 2026 3:18am UTC
Category: Bearings, V-belts and Power Transmission Equipment
