ISCC-050-050 One-Piece Industry Standard Clamping Coupling MPN:ISCC-050-050
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7224612

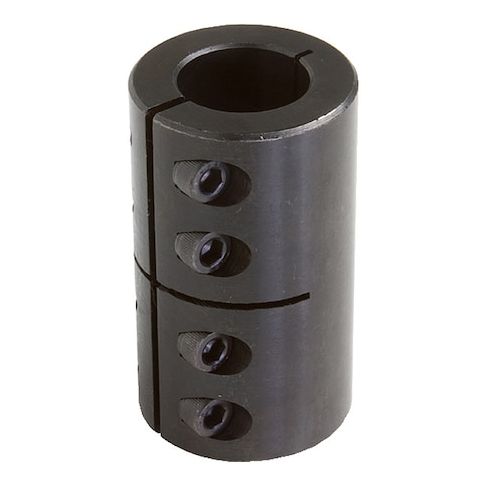

ISCC-050-050 One-Piece Industry Standard Clamping Coupling
This one-piece clamping coupling is an industry standard solution for rigid shaft connections. Its compact design and carbon steel construction make it ideal for applications requiring high torque and speed, such as in gearboxes, motors, and other mechanical systems. With a maximum torque of 450 in-lb and a maximum speed of 4,000 RPM, this coupling is suitable for a wide range of industries, including aerospace, automotive, and manufacturing. Its simple design and low lead time make it a convenient choice for engineers and technicians.
Top product features:
- One-piece construction provides a compact design.
- Carbon steel material offers durability and resistance to wear.
- Maximum torque of 450 in-lb allows for high-torque applications.
Top product applications:
- Power transmission in high-speed applications
- Mechanical drive systems for precision machinery
- High-torque applications in robotic assembly
Rigid Shaft Coupling, Bore Diameter 1 1/2 in, Bore Diameter 2 1/2 in, Bore Type Round, Clearance Diameter 1.38 in, Coupling Construction One-Piece, Coupling Material Carbon Steel, Coupling Outside Diameter 1 1/8 in, Different Bore Sizes No, Keyway Depth 1 Not Applicable, Keyway Depth 2 Not Applicable, Minimum Bore Diameter 1/2 in, Keyway Width 1 Not Applicable, Keyway Width 2 Not Applicable, Maximum Bore Diameter 1/2 in, Maximum Speed 4,000 RPM, Maximum Torque 450 in-lb, Overall Length 1 3/4 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.80
- Package Width: 1.20
- Package Height: 1.20
- Package Weight: 0.35
Product info last updated on February 9, 2026 10:09pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
