Rigid Shaft Coupling, Set Screw, 3/4" L MPN:RC-025-S
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7022556

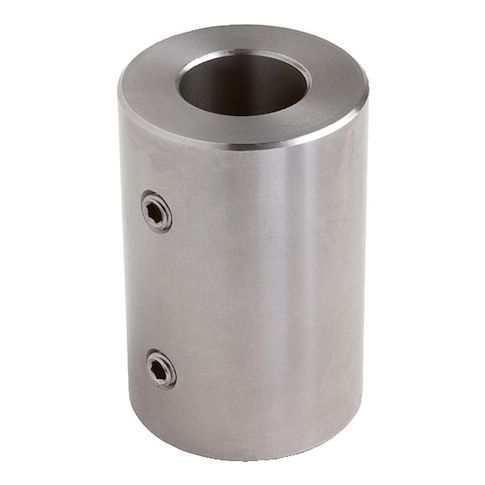

Rigid Shaft Coupling, Set Screw, 3/4" L
The RC-025-S Set Screw Coupling from Climax Metal is a reliable and durable solution for connecting rigid shafts in a variety of applications. Its one-piece stainless steel construction and round bore design provide excellent strength and resistance to corrosion, making it ideal for use in harsh environments. With a maximum torque of 38 in-lb and a maximum speed of 3,500 RPM, this coupling is suitable for a range of industrial and commercial applications, including robotics, medical equipment, and food processing. Its compact size and low weight make it easy to integrate into existing systems.
Top product features:
- Rigid Shaft Coupling design allows for the connection of two shafts in a single piece construction
- One-piece stainless steel construction provides high strength and durability
- Coupling can withstand a maximum torque of 38 in-lb
Top product applications:
- Gearbox Output Shaft Coupling
- Robotics and Automation Equipment
- Precision Machine Tooling
Rigid Shaft Coupling, Bore Diameter 1 1/4 in, Bore Diameter 2 1/4 in, Bore Type Round, Clearance Diameter 0.5 in, Coupling Construction One-Piece, Coupling Material Stainless Steel, Coupling Outside Diameter 1/2 in, Different Bore Sizes No, Keyway Depth 1 Not Applicable, Keyway Depth 2 Not Applicable, Minimum Bore Diameter 1/4 in, Keyway Width 1 Not Applicable, Keyway Width 2 Not Applicable, Maximum Bore Diameter 1/4 in, Maximum Speed 3,500 RPM, Maximum Torque 38 in-lb, Overall Length 3/4 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.20
- Package Width: 0.70
- Package Height: 0.70
- Package Weight: 0.02
Product info last updated on March 26, 2026 7:26pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
