2ISCC-100-075KW Two-Piece Industry Standard Clamping Coupling with Keyway MPN:2ISCC-100-075KW
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G6978955

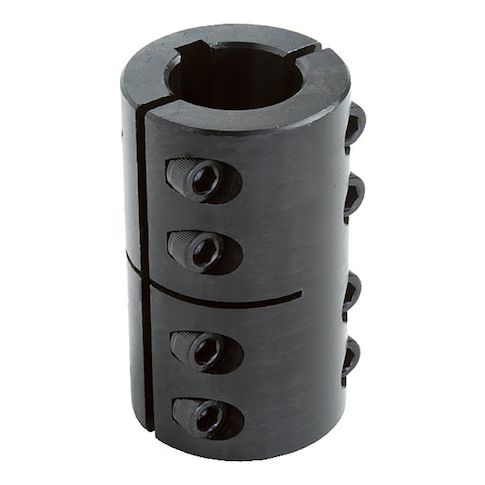

2ISCC-100-075KW Two-Piece Industry Standard Clamping Coupling with Keyway
The 2ISCC-100-075KW Two-Piece Industry Standard Clamping Coupling with Keyway is a versatile and reliable shaft coupling designed for use in a variety of applications. Suitable for rigid shafts, this coupling features a two-piece construction with a carbon steel material and a round keyed bore type. With a maximum speed of 4,000 RPM and a maximum torque of 1,850 in-lb, it is ideal for use in machinery and equipment that requires precision and durability. Its clamp-on shaft locking type makes it easy to install and remove, and its compact design fits into tight spaces, making it a valuable addition to any industrial setting.
Top product features:
- Rigid shaft coupling design allows for secure connection of two shafts with different bore sizes.
- The two-piece construction allows for easy disassembly and maintenance.
- The clamp-on shaft locking type provides a secure and adjustable connection.
Top product applications:
- Conveyor systems
- Power transmission equipment
- Industrial machinery
Rigid Shaft Coupling, Bore Diameter 1 1 in, Bore Diameter 2 3/4 in, Bore Type Round Keyed, Clearance Diameter 2.06 in, Coupling Construction Two-Piece, Coupling Material Carbon Steel, Coupling Outside Diameter 1 3/4 in, Different Bore Sizes Yes, Keyway Depth 1 1/8 in, Keyway Depth 2 1/8 in, Minimum Bore Diameter 3/4 in, Keyway Width 1 1/4 in, Keyway Width 2 1/4 in, Maximum Bore Diameter 1 in, Maximum Speed 4,000 RPM, Maximum Torque 1,850 in-lb, Overall Length 3 in, Shaft Locking Type Clamp On
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.75
- Package Width: 1.75
- Package Height: 3.00
- Package Weight: 1.48
Product info last updated on March 25, 2026 10:32pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
