ISCC-200-200-KW One-Piece Industry Standard Clamping Coupling with Keyway MPN:ISCC-200-200-KW
Discount: See in Cart
Out Of Stock
Out Of Stock
SKU
510-G6971641

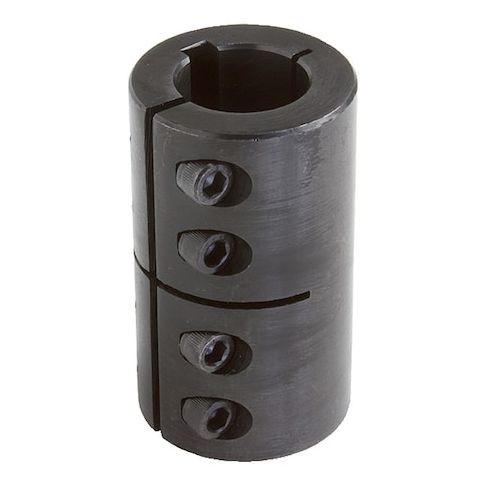

ISCC-200-200-KW One-Piece Industry Standard Clamping Coupling with Keyway
The ISCC-200-200-KW One-Piece Industry Standard Clamping Coupling with Keyway is a versatile and reliable shaft coupling designed for a variety of applications. Suitable for use in power transmission systems, it offers a rigid connection between two shafts, ensuring precise alignment and smooth operation. With a maximum speed of 4,000 RPM and a maximum torque of 8,310 in-lb, this coupling is ideal for use in industrial machinery, such as pumps, motors, and gearboxes. Its one-piece construction and clamp-on shaft locking type make it easy to install and maintain. This coupling is a great solution for applications requiring high precision and reliability.
Top product features:
- Rigid shaft coupling design allows for secure attachment to a shaft
- Carbon steel construction provides durability and resistance to wear
- Clamp-on shaft locking mechanism enables easy installation and secure connection
Top product applications:
- Power transmission in industrial machinery
- High-speed rotating equipment
- Precision manufacturing and assembly
Rigid Shaft Coupling, Bore Diameter 1 2 in, Bore Diameter 2 2 in, Bore Type Round Keyed, Clearance Diameter 3.56 in, Coupling Construction One-Piece, Coupling Material Carbon Steel, Coupling Outside Diameter 3 3/8 in, Different Bore Sizes No, Keyway Depth 1 1/4 in, Keyway Depth 2 1/4 in, Minimum Bore Diameter 2 in, Keyway Width 1 1/2 in, Keyway Width 2 1/2 in, Maximum Bore Diameter 2 in, Maximum Speed 4,000 RPM, Maximum Torque 8,310 in-lb, Overall Length 4 7/8 in, Shaft Locking Type Clamp On
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.25
- Package Width: 3.25
- Package Height: 4.88
- Package Weight: 6.69
