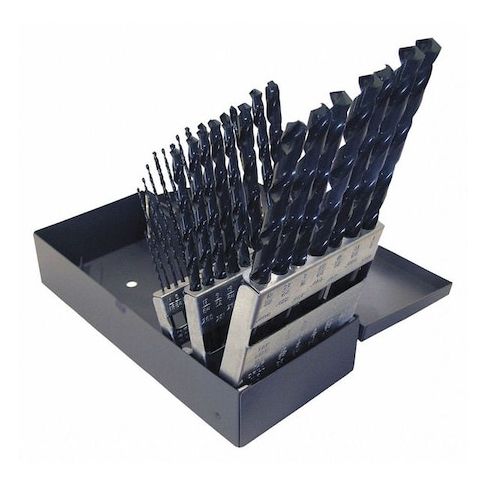

29PC 118 Degree General-Purpose Taper Length Drill Set Cleveland 2510 Steam Oxide HSS RHS/RHC 1/16-1/2 MPN:C00962
Free Shipping
In Stock
This 29-piece taper length drill set from Cleveland is a versatile and reliable tool for a variety of drilling applications. Featuring 118-degree points for optimal cutting and 4:1 depth-to-diameter ratios for efficient material removal, these high-speed steel drill bits are perfect for general-purpose drilling in wood, metal, and other materials. The black oxide coating provides corrosion resistance and a long-lasting finish. With 29 bits covering sizes from 1/16 to 1/2 inch, this set is ideal for DIY projects, woodworking, metalworking, and any other application requiring a range of drill bit sizes.
Top product features:
- 29PC 118 Degree General-Purpose Taper Length Drill Set has 29 drill bits.
- Drill bits have a 118 degree point angle.
- Drill bits are made of high speed steel.
Top product applications:
- Drilling into wood for general carpentry and woodworking projects
- Drilling holes for screws and fasteners in metal for general metalworking projects
- Drilling holes for pipes and tubing in plastic and metal for plumbing and HVAC projects
The CLEVELAND C00962 Taper Length Drill Bit Set (Series 2510) includes 29 fractional inch drill bits ranging in size from 1/16 inch to 1/2 inch. Made from high speed steel with a black oxide finish, these drill bits are a general-purpose high-speed steel drill bit grade for use on materials corresponding to ISO material codes K and P. They feature a conventional 118-degree radial point
- two spiral flutes
- taper length geometry provides a 4xD depth-to-diameter ratio. The set meets ASME B94.11M-1993 dimensional/geometry requirements for drill bits in this set (series 2510). Its right-hand cutting direction accommodates drilling in carbon steel, alloy steel, and cast iron when used according to recommended feeds/speeds for the material type.
Key Features:
- - 29 drill bits sized from 1/16" to 1/2" by 64ths
- - High Speed Steel construction, general purpose grade
- - Fractional inch measurement system
- - Taper length design with 4x depth-to-diameter ratio
- - Spiral flute type with 21° to 34° helix angle
- - 2 flutes per bit for chip removal
- - Radial (conventional) 118° point angle
- - Straight shank type for sizes 1/16" to 1/2" by 64ths
- - Black oxide finish for surface treatment
- - Compliance with ASME B94.11M-1993 standard
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.30
- Package Width: 4.40
- Package Height: 2.20
- Package Weight: 4.65
