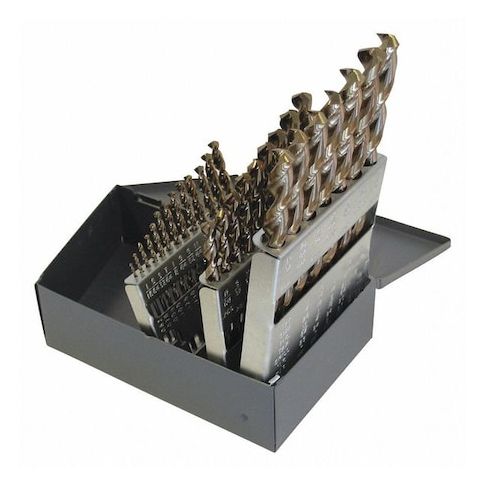

29PC Q-Cobalt Wide Land Parabolic Jobber Dril Set Cleveland 2075 Straw HSS-CO RHS/RHC 1/16-1/2x1/64 MPN:C00902

The CLEVELAND - C00902 is a jobber length drill bit set comprising 29 cobalt drill bits ranging in size from 1/16 inch to 1/2 inch in fractional increments. These drill bits feature split point tips with a 135-degree angle and right-hand spiral direction, intended for drilling applications in aluminum, cast iron, stainless steel, and steel (as applicable to the specified bit sizes and shank diameter). The bits comply with ASME B94.11M-1993 and DIN 338 standards and are intended for machining applications requiring cobalt drill bits in the specified sizes and dimensions.

Key Features:

• - Number of pieces: 29 drill bits with sizes from 1/16" to 1/2".
• - Drill bit length: Jobber length with overall lengths ranging from 1 7/8" to 6".
• - Material: Cobalt drill bits with the specified material grade for use in machining applications.
• - Point type: Split point with a 135-degree angle for precise starting and reduced walking.
• - Flutes: 2 wide land parabolic flutes with helix angles between 35° and 45°.
• - Shank: Straight profile with a diameter matching the bit size.
• - Measurement system: Fractional inch format.
• - Spiral direction: Right hand, standard cutting direction.
• - Includes metal drill index case for convenient storage.
