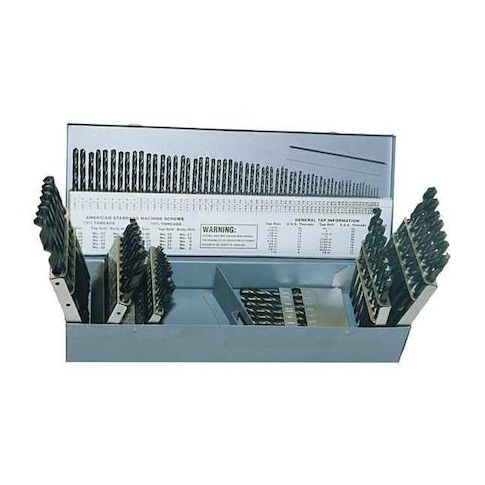

115PC 135 Deg HD Jobber Length Drill Set Cle-Line 1801 Oxide HSS RHS/RHC 1/16-1/2, A-Z, N1-No 60 MPN:C21128
Free Shipping
In Stock
The 115PC 135 Deg HD Jobber Length Drill Set is a comprehensive collection of 115 drill bits, engineered to deliver exceptional performance and durability in a wide range of applications. Suitable for use in woodworking, metalworking, and automotive industries, these high-speed steel drill bits feature a 135-degree point angle for smooth, precise holes. The black oxide finish enhances corrosion resistance and extends tool life. With a vast range of sizes from 1/16 to 1/2 inch, this set is ideal for professionals and DIYers alike, making it an essential addition to any toolbox or workshop.
Top product features:
- 115PC 135 Deg HD Jobber Length Drill Set Cle-Line 1801 Oxide HSS RHS/RHC 1/16-1/2, A-Z, N1-No 60 has a 135-degree drill bit point angle.
- This drill bit set is made from machining high-speed steel.
- The drill bits have a machining black oxide finish.
Top product applications:
- Drilling metal
- Drilling wood
- Drilling plastic
The CLE-LINE C21128 is a jobber-length drill bit set composed of 115 pieces, intended for drilling cast iron and steel (ISO codes K, P). Made from heavy-duty high speed steel, it includes bits ranging in size from #60 (1/16 in) to #1 (1/2 in), covering fractional inch, letter, and wire measurement systems. Bits have a split point tip with a 135-degree point angle and include a black oxide finish. This set is suited for applications requiring precise drilling with a right-hand cutting direction and straight shanks, conforms to ASME B94.11M and DIN 338 standards. Requires external coolant
- bits are not coolant-through.
Key Features:
- - Number of drill bits: 115 pieces with 2 flutes per bit
- - Drill bit size range: #60 to #1, including fractional inch, letter, and wire sizes
- - Overall length range: 1 5/8 in to 6 in, accommodating various drilling depths
- - Material: Heavy-duty high speed steel with black oxide finish
- - Point angle: 135 degrees with split point tip
- - Helix angle: Variable between 21 and 34 degrees with spiral flute design
- - Shank type: Straight
- - Cutting and thread direction: Right-hand
- - Drill bit tolerance: +0.0000 in / -0.0005 to -0.0010 in
- - Conforms to standards: ASME B94.11M and DIN 338
- - Primary material applications: Cast iron and steel (ISO codes K, P)
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.80
- Package Width: 5.20
- Package Height: 2.50
- Package Weight: 8.15
