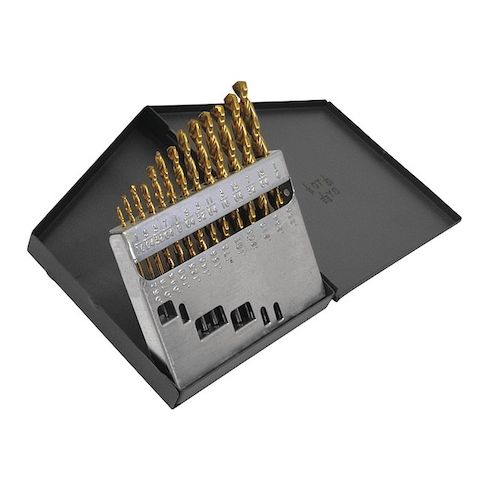

13PC 1/16-1/4x1/64 HSS 135 Degree HD Parabolic Jobber Length Drill Set Cle-Line 1872 TiN RHS/RHC MPN:C18700

The CLE-LINE - C18700 is a jobber-length drill bit set comprising 13 high speed steel bits for fractional inch drilling applications. Bit sizes are 1/16 in to 1/4 in (by 64ths increments), with drill bits that have a straight shank and a right-hand spiral (right-hand helix/rotation). Each bit includes a parabolic flute and a 135-degree split point. Finish: Titanium Nitride (TiN) coating. Intended for non-coolant through use (requires external coolant application if coolant is used).

Key Features:

• - Drill size range: 1/16 in to 1/4 in by 64ths increments
• - Number of drill bits: 13 pieces in the set
• - Material: High speed steel construction
• - Drill length class: Jobber length
• - Cutting direction: Right hand with right-hand spiral
• - Flute type: Parabolic
• - Drill point: 135-degree split point
• - Drill diameter tolerance: +0.0000 in / -0.0005 to -0.0007 in
• - Helix angle: 40 degrees
• - Shank type: Straight
• - Finish: Titanium Nitride (TiN) coating
• - Coolant type: Non-coolant through (requires external coolant application if used)
