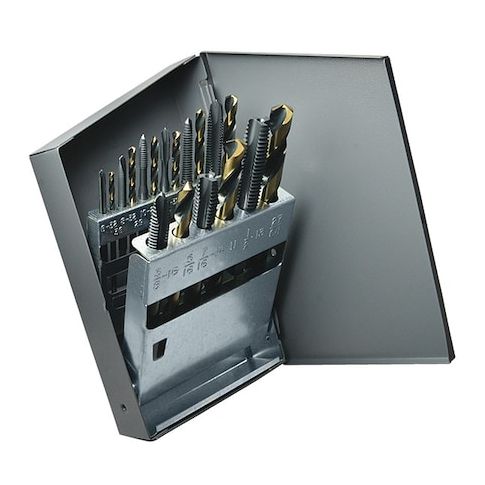

18PC, N36, N29, N25, N21, N7, F, 5/16, U, 27/64 HSS Blk&Gld HD Jobber Dril & Spiral Pnt Tap Set Cle-Line 1878 MPN:C21192

• The CLE-LINE - C21192 is a drill and tap set that includes 18 drill bits with sizes ranging from #36 to 27/64 inch. The bits are constructed from high speed steel and have a jobber-length design with straight shanks. This set uses a fractional inch measurement system and features drill bits with spiral flutes and a split point design for cutting. The bits have a 135-degree point angle and a helix angle of 28 degrees, specify “cutting direction: right-hand”.

  Key Features:


  • - Contains 18 drill bits covering sizes from #36 to 27/64 inch.
  • - Made of high speed steel for machining applications.
  • - Drill bit length class: Jobber-length.
  • - Straight shank type.
  • - Drill bits feature a split point with a 135-degree point angle.
  • - Spiral flute design with a helix angle of 28 degrees.
  • - Drill diameter tolerance ranges from +0.0000/-0.0005 in to +0.0000/-0.0010 in.
  • - Black oxide finish on cutting surfaces.
  • - Requires external coolant for cutting applications (non-coolant through
  • coolant is applied externally).
  • - Cutting direction: Right hand.
