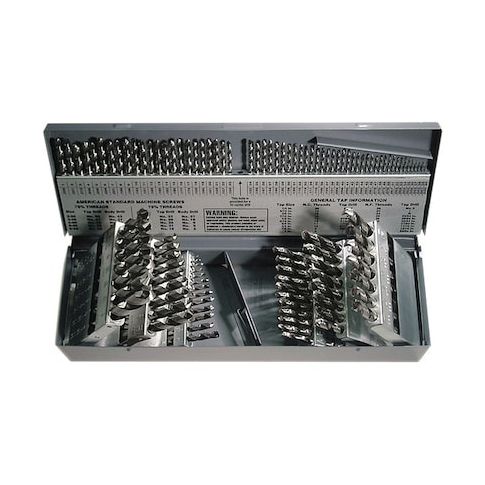

115PC 118 Deg General Purpose Jobber Drill Set CLE 1898 Bright HSS RHS/RHC 1/16-1/2, A-Z, No 1-No 60 MPN:C21126
Free Shipping
In Stock
This 115-piece jobber drill set is ideal for general-purpose drilling and offers a wide range of applications in various industries. With 118-degree point angles, these bright HSS drill bits provide excellent cutting performance and durability. The set includes drill bits from 1/16 to 1/2 inches in diameter, covering sizes A-Z and numbers 1-60. Perfect for use in metalworking, woodworking, and other industries, these drill bits are designed for high-speed machining and can be used in a variety of machines. The set's compact storage case makes it easy to transport and store.
Top product features:
- 115PC 118 Deg General Purpose Jobber Drill Set CLE 1898 Bright HSS RHS/RHC 1/16-1/2, A-Z, No 1-No 60 from CLE-Line
- Jobber Length Drill Bit Set
- Drill Bit Point Angle 118 Degrees
Top product applications:
- General purpose drilling in wood and metal
- Drilling holes in machine parts and fixtures
- General purpose drilling in masonry and concrete
The CLE-LINE - C21126 is a jobber-length drill bit set containing 115 high speed steel bits intended for use in drilling operations on aluminum, cast iron, and steel (when used with appropriate speeds, feeds, and cutting fluid for the work material). The set covers a range of sizes from #60 (1/16 inch, A) up to #1 (1/2 inch, Z) and includes fractional inch, letter, and wire gauges. Each drill bit features a right-hand spiral flute and radial point with a 118-degree point angle, specified for general drilling applications within the stated bit geometry and length class. The bits have a straight shank and come in various overall lengths ranging from 1 5/8 inches to 6 inches.
Key Features:
- - Drill bit sizes included: #60 to #1, covering fractional inch, letter, and wire measurements.
- - Material: High speed steel with a general purpose machining grade.
- - Flute type: 2-flute spiral with variable helix angles between 21 and 34 degrees.
- - Drill bit length class: Jobber-length with overall lengths from 1 5/8" to 6".
- - Cutting direction: Right hand thread and spiral.
- - Depth-to-diameter ratio: 4x diameter.
- - Drill bit tolerance: +0.0000 in / -0.0005 to -0.0010 in.
- - Finish: Bright (uncoated) drill bits.
- - Compliance with standards: ASME B94.11M and DIN 338.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.70
- Package Width: 4.70
- Package Height: 2.60
- Package Weight: 8.15
