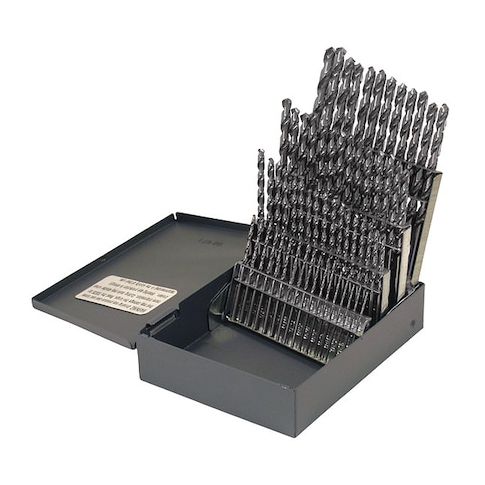

60PC No 1-No 60 HSS 118 Degree General Purpose Jobber Length Drill Set Cle-Line 1898 Bright RHS/RHC MPN:C21122

• The CLE-LINE C21122 is a jobber-length drill bit set comprising 60 pieces made from high-speed steel. The set includes drill bits ranging in size from #60 to #1, featuring a straight shank and an uncoated finish. Each bit has a radial point with a 118-degree point angle and variable helix angles between 21 and 34 degrees. This right-hand spiral drill bit set is intended for drilling applications in aluminum, cast iron, and steel (ISO codes K, N, P), with a wire measurement system and conformance to ASME B94.11M and DIN 338 standards. These are non-coolant-through bits

• use externally supplied coolant during drilling as applicable to the workpiece and process.

  Key Features:


  • - Contains 60 drill bits with sizes from #60 up to #1.
  • - Jobber-length design with overall lengths varying between 1 5/8 inches and 3 7/8 inches.
  • - Two-flute spiral design with right-hand cutting and thread direction.
  • - Drill diameter tolerance between +0.0000 in / -0.0005 in to +0.0000 in / -0.0007 in.
  • - Intended for drilling applications in aluminum, cast iron, and steel (ISO codes K, N, P).
  • - Features a straight shank type for mounting in drill chucks.
  • - With a 118-degree point angle for general-purpose drilling geometry.
  • - Supplied in a metal index case.
