115PC 118 Deg General Purpose Jobber Length Drill Set Cle-Line 1899 Oxide HSS 1/16-1/2, A-Z, N1-No 60 MPN:C21127

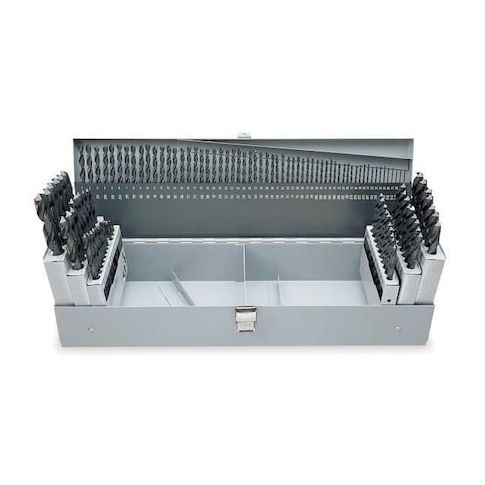

The CLE-LINE - C21127 is a jobber length drill bit set comprising 115 high speed steel bits intended for drilling applications using high speed steel (HSS) bits. These drill bits are sized for fractional inch, letter, and wire size measurements. The set covers a size range from #60 (1/16") to #1 (1/2") and is intended for use on aluminum, cast iron, and steel (when used with appropriate cutting conditions). The bits come in a metal index case.

• - Material: High speed steel (general purpose grade)
• - Size range: #60 to #1, 1/16" to 1/2", including letters A to Z
• - Point type: Conventional 118-degree
• - Flute type and direction: 2-flute spiral, right-hand helix angle between 21° and 34°
• - Drill length: Jobber length, Overall length range: 1 5/8" to 6"
• - Shank type: Straight, various diameters matching drill bit sizes
• - Measurement systems included: Fractional inch, letter, and wire sizes
• - Regulatory standards: ASME B94.11M-1993, DIN 338
• - Includes a metal drill index case for bit organization
