29PC 118 Degree General Purpose Jobber Lngth Drill Set Cle-Line 1899 Steam Oxide HSS RHS/RHC 1/16-1/2x1/64 MPN:C21118

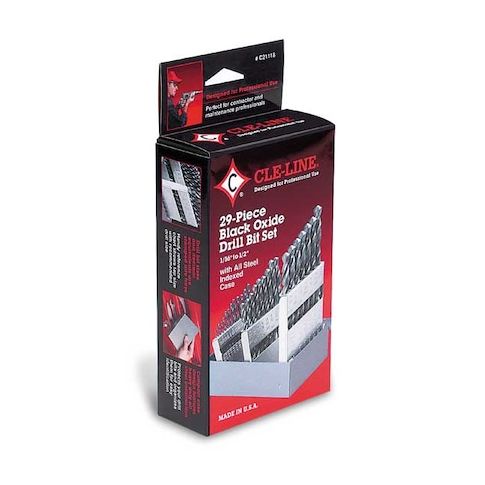

The CLE-LINE C21118 is a jobber length drill bit set comprising 29 pieces with fractional inch sizes ranging from 1/16" to 1/2" by 64ths. Made from high speed steel with a general purpose grade, these drill bits feature a conventional 118-degree point type and are intended for drilling cast iron and steel applications. The set includes a metal index case for storage and organization, accommodating drill bits with lengths spanning from 1 7/8" to 6". Each drill bit has a straight shank with a diameter of 1/6" and two spiral flutes with right-hand cutting direction.

Key Features:

• - Contains 29 drill bits sized from 1/16" to 1/2" in fractional inches.
• - Jobber length classification with overall lengths between 1 7/8" and 6".
• - High speed steel construction for general purpose machining.
• - Conventional 118° point angle for ISO material groups K and P.
• - Two-flute spiral design with helix angles ranging from 21° to 34° and right-hand cutting direction.
• - Straight shank type with 1/6" diameter.
• - Includes a metal drill index case for organization and storage.
• - Manufacturing meets ASME B94.11M-1993 and DIN 338 standards.
• - Not rated for aircraft drill applications.
