60PC 118 Deg General Purpose Jobber Length Drill Set Cle-Line 1899 Steam Oxide HSS RHS/RHC, N1-No 60 MPN:C21123

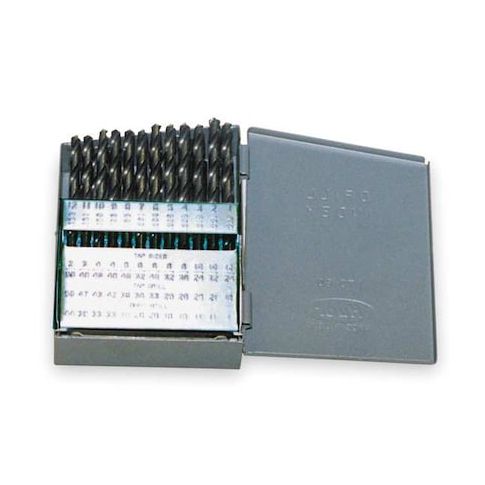

The CLE-LINE - C21123 is a jobber-length drill bit set consisting of 60 high-speed steel drill bits with sizes ranging from #60 to #1. Manufactured for use in general machining applications. The drill bits feature a conventional 118-degree point angle and a right-hand cutting direction, with a spiral flute geometry intended to form and direct chips during cutting. The set comes with a metal index case for storage and organization. Meets the dimensional and manufacturing requirements of ASME B94.11M-1993 and DIN 338.

Key Features:

• - Drill bit sizes: #60 to #1 (wire gauge system)
• - Number of drill bits: 60 pieces
• - Material: High Speed Steel, general purpose grade
• - Drill bit length: Jobber length, ranging from 1 5/8 in to 3 7/8 in overall
• - Point type: Conventional, 118-degree angle
• - Flutes: 2 spiral flutes with helix angles between 21° and 34°
• - Shank type: Straight, diameter 1/25 in
• - Cutting direction: Right hand
• - Primary material application: Cast Iron (K) and Steel (P) materials per ISO codes
• - Includes metal drill index case for organization
• - Standards: ASME B94.11M-1993, DIN 338
