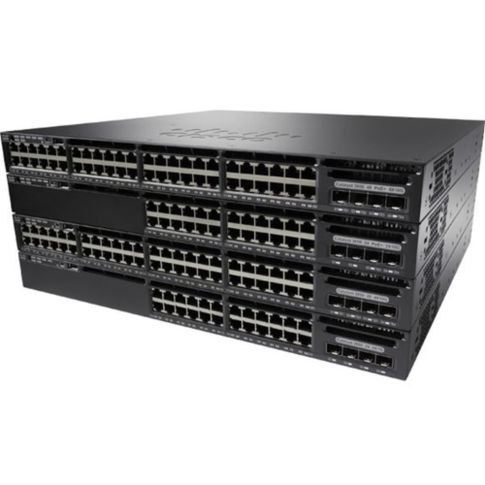

Cisco Catalyst 3650-8X24UQ-S Switch - 24 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - WSC36508X24UQS MPN:WS-C3650-8X24UQ-S
SKU
312-5927801
Cisco Catalyst 3650-8X24UQ-S Switch - 24 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - WSC36508X24UQS MPN:WS-C3650-8X24UQ-S
The Cisco Catalyst 3650-8X24UQ-S Switch is a powerful and versatile networking solution designed for enterprise environments. This manageable switch features 24 ports, supporting Gigabit Ethernet and 10 Gigabit Ethernet connections. With optional Cisco StackWise-160 technology, it provides scalability and resiliency with 160 Gbps of stack throughput. Ideal for retail, branch offices, and enterprise environments, this switch supports up to 50 access points and 1000 wireless clients, making it a great choice for wireless networks. Its compact design and energy-efficient features make it perfect for shallow depth cabinets and reducing power consumption.
Top product features:
- Optional Cisco StackWise-160 technology provides scalability and resiliency with 160 Gbps of stack throughput
- Up to 40G of wireless capacity per switch
- Support for up to 50 access points and 1000 wireless clients on each switching entity
Top product applications:
- Enterprise Network Switch
- Wireless Network Controller
- Retail Point-of-Sale Network Switch
Five fixed-uplink models with four Gigabit Ethernet, two 10 Gigabit Ethernet, four 10 Gigabit Ethernet, eight 10 Gigabit Ethernet, or two 40 Gigabit Ethernet Quad Small Form-Factor Pluggable Plus (QSFP+) ports Optional Cisco StackWise-160 technology that provides scalability and resiliency with 160 Gbps of stack throughput 24 and 48 100-Mbps and 1-, 2.5-, 5-, and 10-Gbps (multigigabit) Cisco UPOE models with EEE[1] Up to 40G of wireless capacity per switch (48-port models) Dual redundant, modular power supplies and three modular fans providing redundancy[2] Support for up to 50 access points and 1000 wireless clients on each switching entity (switch or stack) Support for external power system RPS 2300 on the 3650 mini SKUs for power redundancy 24 and 48 10/100/1000 data and PoE+ models with energy-efficient Ethernet (EEE) supported ports 24-port and 48-port 10/100/1000 PoE+ models with lower noise and reduced depth of 11.62 inches for shallow depth cabinets in enterprise, retail, and branch-office environments Integrated wireless controller capability with:
Features
- Brand Name: Cisco
- Compatible Rack Unit: 1U
- Depth: 19-1/10 in.
- Dimensions: 1-7/10 in. X 17-1/2 in. X 19-1/10 in.
- Eco Label Standard: RoHS
- Expansion Slot Type: SFP+
- Height: 1-7/10 in.
- Layer Supported: 3
- Manageable: Yes
- Manufacturer: CISCO
- Media Type Supported: Twisted Pair; Optical Fiber
- Model: 3650-8X24UQ-S
- Modular: Yes
- Network Technology: 1000Base-T; 10GBase-X; 10GBase-T
- Number of Ports: 24
- Number of SFP+ Slots: 4
- Port/Expansion Slot Details: 16 x Gigabit Ethernet Network; 8 x 10 Gigabit Ethernet Network; 8 x 10 Gigabit Ethernet Expansion Slot
- Quantity: 1
- Shared Sfp Slot: No
- Stack Port: Yes
- Total Number of Expansion Slots: 4
- Total Quantity: 1 Switches
- Uplink Port: Yes
- Warranty: Limited Lifetime
- Width: 17-1/2 in.
Additional Information
- Country of Origin: CN
- UNSPSC Code: 43222612
- UNSPSC Commodity: Network switches
- Green: No
- Recycled Content: FALSE
- Hazardous: No
- Prop 65: No
- MSDS URL: nan
- Package Weight: 0.01
Product info last updated on January 7, 2025 8:34am UTC
Category: Networking and Cables
