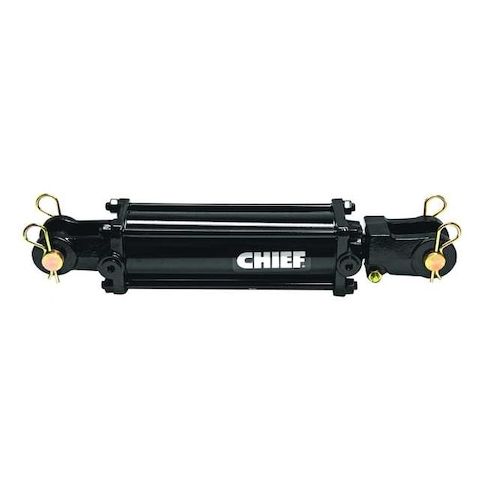

Hydraulic Cylinder, 4" Bore Dia. MPN:400815TCU3
Hydraulic Cylinder, 4" Bore Dia.
The Chief Mfg Hydraulic Cylinder is a heavy-duty, high-performance solution for a wide range of applications, including construction, manufacturing, and agricultural industries. With a 4in bore diameter and 8in stroke length, this cylinder delivers maximum force and efficiency. Its durable construction features a heavy-wall honed steel tube, ductile iron piston, and chrome-plated rod, ensuring reliability and longevity. Capable of withstanding temperatures from -20 to 180°F and pressures up to 3,000 psi, this cylinder is ideal for use in extreme environments. Perfect for heavy-duty applications, it provides a long-lasting and cost-effective solution for demanding tasks.
Top product features:
- Hydraulic cylinder with tie-rod design for added stability and control
- Heavy-wall honed steel tube for durability and resistance to wear
- Polyurethane ring material for improved seal and reduced maintenance
Top product applications:
- Cranes and hoists for heavy-duty lifting operations
- Material handling equipment for warehouse and factory settings
- Excavators and backhoes for construction and excavation work
Hydraulic Cylinder, Tie-Rod, Bore Dia. 4 in, Stroke Length 8 in, Rod Dia. 1 1/2 in, Retracted Length 20 1/4 in, Port Size #8 SAE, Extended Length 28 1/4 in, Max. Pressure 3,000 psi, Temp. Range -20 Degrees to 180 Degrees F, Piston Material Ductile Iron, Piston Rod Material Chrome Plated, Ring Material Polyurethane, Tube Material Heavy-wall Honed Steel, Wear Band Material Durable, Non-Metallic, Body Material Steel, Tie Rods High Tensile, Finish Unfinished, Standards SAE J214
Additional Information
- Country of Origin: CH
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 25.30
- Package Width: 6.50
- Package Height: 6.10
- Package Weight: 44.10
Product info last updated on March 3, 2026 12:18am UTC
Category: Hydraulic Cylinders and Equipment
