TC3 Tie-rod Hydraulic Cylinder: 4 Bore x 16 ASAE Stroke - 2 Rod MPN:211401

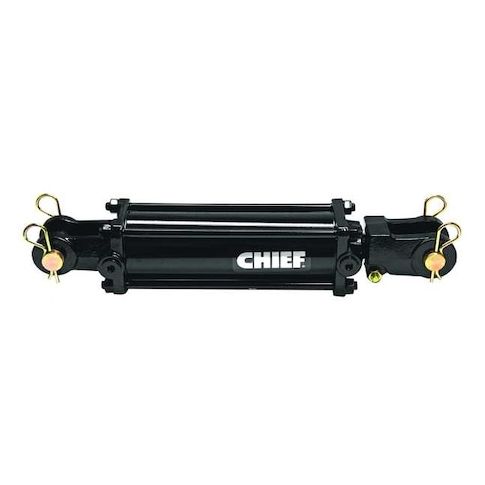

TC3 Tie-rod Hydraulic Cylinder: 4 Bore x 16 ASAE Stroke - 2 Rod
The TC3 Tie-rod Hydraulic Cylinder is a heavy-duty solution for a variety of applications, including agricultural equipment, construction machinery, and industrial manufacturing. Its 4-inch bore and 16-inch stroke provide a powerful and reliable motion, while its ductile iron piston and chrome-plated rod ensure durability and resistance to wear. The cylinder's temperature range of -20 to 180 degrees F makes it suitable for use in extreme environments. Its high-tensile tie rods and heavy-wall honed steel tube provide added strength and stability, making it an ideal choice for applications that require precision and reliability.
Top product features:
- Heavy-wall Honed Steel construction for durability
- Piston Rod Material Chrome Plated for corrosion resistance
- Polyurethane Ring Material for long-lasting seal
Top product applications:
- Agricultural equipment, such as tractors and plows, use tie-rod hydraulic cylinders for lifting and lowering heavy loads.
- Construction equipment, such as excavators and backhoes, utilize tie-rod hydraulic cylinders for arm and boom movement.
- Industrial machinery, such as presses and shears, employ tie-rod hydraulic cylinders for heavy-duty applications.
Hydraulic Cylinder, Tie-Rod, Bore Dia. 4 in, Stroke Length 16 in, Rod Dia. 2 in, Retracted Length 31 1/2 in, Port Size #8 SAE, Extended Length 47 1/2 in, Max. Pressure 3,000 psi, Temp. Range -20 Degrees to 180 Degrees F, Piston Material Ductile Iron, Piston Rod Material Chrome Plated, Ring Material Polyurethane, Tube Material Heavy-wall Honed Steel, Wear Band Material Durable, Non-Metallic, Body Material Steel, Tie Rods High Tensile, Finish Unfinished, Standards SAE J214, Includes Pins and Clips
Additional Information
- Country of Origin: CH
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 38.00
- Package Width: 6.00
- Package Height: 6.00
- Package Weight: 65.00
Product info last updated on April 10, 2026 11:39pm UTC
Category: Hydraulic Cylinders and Equipment
