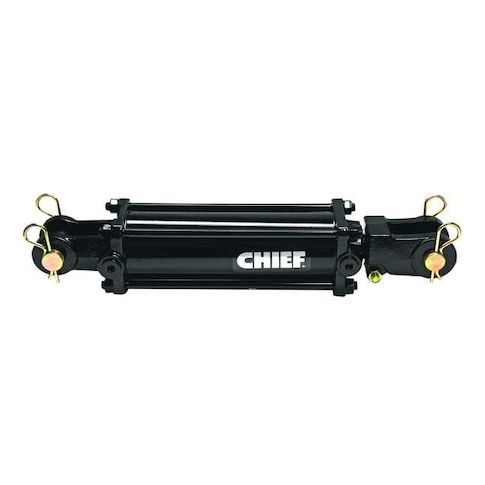

Hydraulic Cylinder, 5" Bore Dia. MPN:502422TCU4
Hydraulic Cylinder, 5" Bore Dia.
The Chief Mfg Hydraulic Cylinder is a robust and reliable solution for heavy-duty applications. With a 5in bore diameter and 24in stroke length, it provides a significant amount of force and movement. The cylinder is designed for use in harsh environments, with a temperature range of -20 to 180 degrees F and a maximum pressure of 3,000 psi. Its ductile iron piston and chrome-plated rod ensure durability and resistance to wear. Suitable for applications in manufacturing, construction, and material handling, this hydraulic cylinder is a valuable asset for any operation that requires heavy-duty performance.
Top product features:
- 5in Bore Dia. design allows for increased hydraulic fluid flow and pressure.
- Tie-Rod configuration provides stability and support to the cylinder.
- Durable, Non-Metallic wear band material resists wear and corrosion.
Top product applications:
- Construction Equipment
- Material Handling Systems
- Heavy Industry Machinery
Hydraulic Cylinder, Tie-Rod, Bore Dia. 5 in, Stroke Length 24 in, Rod Dia. 2 1/4 in, Retracted Length 36 1/4 in, Port Size #12 SAE, Extended Length 60 1/4 in, Max. Pressure 3,000 psi, Temp. Range -20 Degrees to 180 Degrees F, Piston Material Ductile Iron, Piston Rod Material Chrome Plated, Ring Material Polyurethane, Tube Material Heavy-wall Honed Steel, Wear Band Material Durable, Non-Metallic, Body Material Steel, Tie Rods High Tensile, Finish Unfinished, Standards SAE J214
Additional Information
- Country of Origin: CH
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 48.80
- Package Width: 13.40
- Package Height: 14.80
- Package Weight: 127.00
Product info last updated on February 11, 2026 10:39am UTC
Category: Hydraulic Cylinders and Equipment
