Two Stage Pump, 11 GPM Max, 6 HP Input, 1 Tube Inlet, 1/2 x 1 1/2 Shaft MPN:250092
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5836232

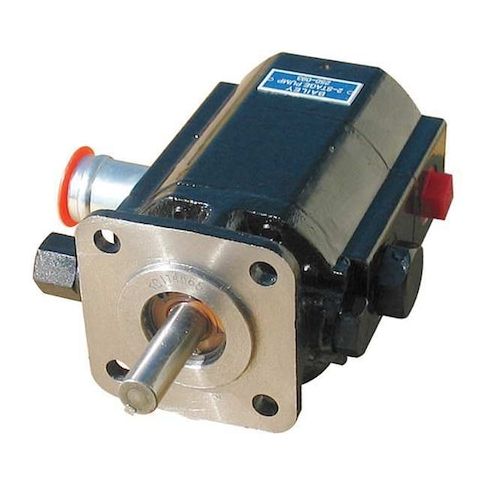

Two Stage Pump, 11 GPM Max, 6 HP Input, 1 Tube Inlet, 1/2 x 1 1/2 Shaft
The two-stage pump from Chief Mfg is a high-performance hydraulic gear pump designed for demanding applications. With a maximum flow rate of 11 GPM and a powerful 6 HP input, it's ideal for heavy-duty use in industries such as construction, agriculture, and manufacturing. The pump's compact design and external drive type make it easy to integrate into existing systems. Its ability to operate at high pressures up to 3,045 psi and temperatures up to 652 psi makes it suitable for applications requiring high pressure and flow rates, such as hydraulic systems and heavy equipment.
Top product features:
- Two-stage pump design allows for efficient flow rate of up to 11 GPM.
- Hydraulic gear pump design enables the pump to operate effectively at high pressures up to 3,045 psi.
- External drive type allows for easy installation and maintenance of the pump.
Top product applications:
- Industrial Oil Transfer
- Well Service and Drilling Operations
- Pneumatic Tool Powering
Hydraulic Gear Pump, Media Intake Connection Size 1 in, Media Intake Connection Type Tube, Discharge Connection Size 1/2 in, Discharge Connection Type NPT, Displacement @ High Pressure per Revolution 0.22 cu in/rev, Displacement @ Low Pressure per Revolution 0.537 cu in/rev, Motor Speed - Maximum 3,600 RPM, Rotation CW, Mounting Type 4 Bolt 4F17, Control Valve Pressure Relief - Maximum 652 psi, Drive Type External, Flow Rate First Stage - Maximum 11 gpm, Operating Pressure - Maximum 3,045 psi
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.10
- Package Width: 6.70
- Package Height: 4.80
- Package Weight: 5.80
Product info last updated on February 6, 2026 1:15am UTC
Category: Hydraulic Cylinders and Equipment
