Two Stage Pump, 13 GPM Max, 7 HP Input, 1 Tube Inlet, 1/2 x 1 1/2 Shaft MPN:250093
Two Stage Pump, 13 GPM Max, 7 HP Input, 1 Tube Inlet, 1/2 x 1 1/2 Shaft

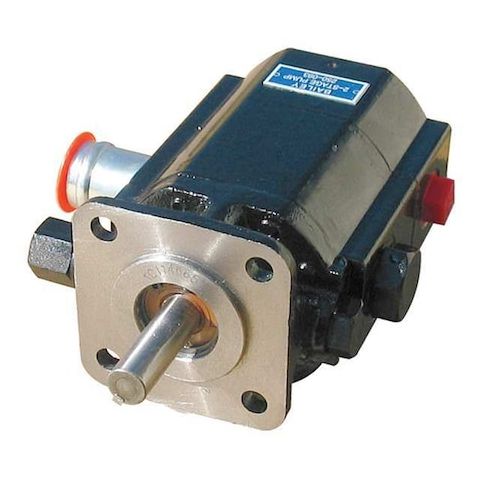

The Chief Mfg Two Stage Pump is a high-performance hydraulic gear pump designed for demanding applications. With a maximum flow rate of 13 GPM and operating pressure of 3,045 psi, this pump is ideal for heavy-duty use in industries such as manufacturing, construction, and agriculture. Its compact design and external drive type make it easy to integrate into existing systems. The pump's two-stage design provides high efficiency and reliability, making it a valuable asset for any operation that requires precise control and high-pressure performance. Its robust construction ensures long-lasting performance in harsh environments.
Top product features:
- Two-stage pump design allows for efficient operation at both high and low pressures.
- The pump has a maximum flow rate of 13 gallons per minute.
- The pump is equipped with a hydraulic gear design for reliable and consistent performance.
Top product applications:
- Power steering systems
- Industrial hydraulic systems
- Marine hydraulic systems
Hydraulic Gear Pump, Media Intake Connection Size 1 in, Media Intake Connection Type Tube, Discharge Connection Size 1/2 in, Discharge Connection Type NPT, Displacement @ High Pressure per Revolution 0.22 cu in/rev, Displacement @ Low Pressure per Revolution 0.665 cu in/rev, Motor Speed - Maximum 3,600 RPM, Rotation CW, Mounting Type 4 Bolt 4F17, Control Valve Pressure Relief - Maximum 652 psi, Drive Type External, Flow Rate First Stage - Maximum 13 gpm, Operating Pressure - Maximum 3,045 psi
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.00
- Package Width: 6.70
- Package Height: 4.50
- Package Weight: 6.24
