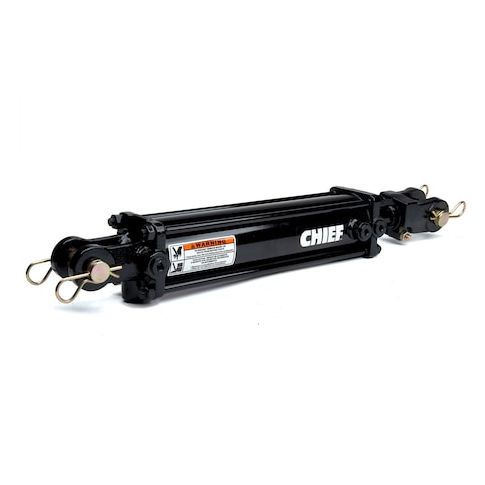

TCR Rephasing Hydraulic Cylinder: 3.75 Bore x 8 Stroke - 1.375 Rod MPN:216042
TCR Rephasing Hydraulic Cylinder: 3.75 Bore x 8 Stroke - 1.375 Rod
The Chief TCR Rephasing Hydraulic Cylinder is designed for construction and agricultural applications where independent loads need to be lifted in series. This cylinder provides unmatched performance and reliability, allowing for the simultaneous extension and retraction of multiple cylinders. Its unique design combines flow dividing components with actuators, saving space and weight. With a 3,000 PSI operating range, customizable stroke lengths, and SAE O-ring ports, this cylinder is ideal for double-acting rephasing applications. Its robust construction and precision seals ensure long-lasting performance, making it a reliable choice for heavy-duty operations.
Top product features:
- The Chief TCR cylinder combines the functions of flow dividing components with that of actuators, saving space and weight.
- The cylinders have SAE O-ring ports that allow for easy hookup.
- The cylinders are functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability.
Top product applications:
- Construction applications
- Agricultural applications
- Double-acting rephasing applications
The Chief TCR is the premier rephasing tie-rod cylinder design, ideal for construction and agricultural applications where you need to lift independent loads plumbed in series. The Chief TCR provides unmatched performance and reliability. Need to lift two or more Cylinders plumbed in series, with bore and rod diameters sized to ensure all rods extend or retract equally? These are designed for you! In addition, these Cylinders combine the functions of flow dividing components with that of actuatorsÑsaving space and weight. The base end clevis extends out 2 inches to ensure greater swing radius and Maximum flexibility.Need more? The Cylinders have SAE O-ring ports that allow for easy hookup. Every Chief TCR cylinder is functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability. TCR Cylinders have a 3,000 PSI operating range.. Cylinders can be customized to meet OEM requirements and stroke lengths. Painted black. Intended Use: Double-acting rephasing applications Piston: Ductile iron Gland: Ductile iron, drilled oil passages Tube: Precisionhoned steel for extended seal life Rod: Hard chrome plated End Mounts: High strength, ductile iron female clevises with pins and R-clips included Tube Seal: Buna O-ring with Polytemp hytrel backup Rod Seal: Twin lip design for a dry rod Rod Wiper: D style prevents contamination Piston Seal: Hallite 755 for prolonged wear resistance (Wear ring on 5Ó bore) All Seals: Manufactured to US specifications Ports: SAE O-ring Paint: Black. Custom colors are available Packaging: Individually poly bagged. 3.75 Bore, 8 Stroke, 1.375 Rod Dia., 20.25 Retracted, 28.25 Extended, 33130 Column Load, SAE 8 Port Size, 1 Pin Dia.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 24.00
- Package Width: 4.50
- Package Height: 4.50
- Package Weight: 39.00
Product info last updated on February 1, 2026 11:44am UTC
Category: Hydraulic Cylinders and Equipment
