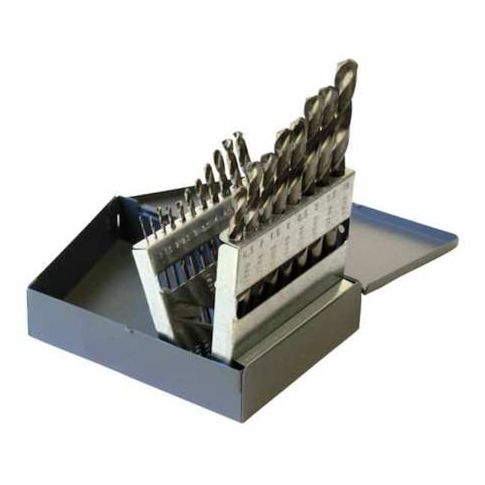

19PC 135 Degree Heavy-Duty Cobalt Jobber Length Drill Set Chicago-Latrobe 550ASP Straw HSS-CO 5% 1mm-10mm MPN:47924

The CHICAGO-LATROBE 47924 is a jobber-length drill bit set composed of 19 cobalt M42 grade bits. The set includes metric sizes ranging from 1.00 mm to 10.00 mm in 0.5 mm increments. Each drill bit features a 135-degree P3 split point and right-hand spiral flutes. The bits are housed in a metal drill index case. This set is stated to comply with NAS 907 Type B.

Key Features:

• - Number of drill bits: 19 pieces ranging from 1.00 mm to 10.00 mm sizes.
• - Material: Cobalt M42 grade.
• - Point type: P3 split point with a 135-degree angle.
• - Flutes: 2 spiral flutes with a right-hand cutting direction and helix angles between 21° and 34°.
• - Drill bit length class: Jobber-length with overall lengths varying per size.
• - Shank type: Straight with a diameter of approximately 0.0394 inches (197/5000 in).
• - Measurement system: Metric sizes organized in a metal index case.
• - Primary material application ISO codes: K, M, N, P covering aluminum, cast iron, stainless steel, and steel.
• - Coolant fed: Non-coolant through design.
