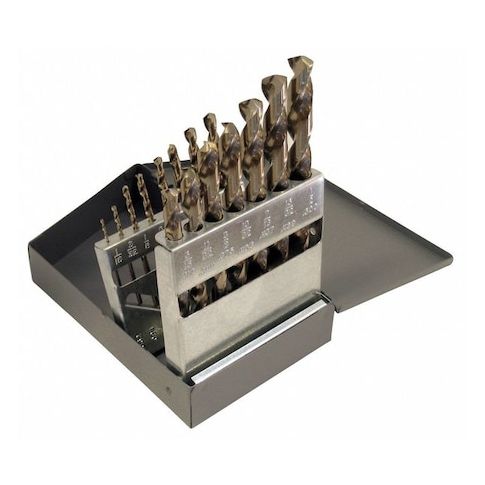

15PC 135 Degree Heavy-Duty Cobalt Jobber Length Drill Set Chicago-Latrobe 550ASP Straw HSS-CO 8% 1/16-1/2 MPN:47795
Free Shipping
In Stock
This heavy-duty 15-piece cobalt jobber length drill set is designed for demanding drilling applications. With a 135-degree point angle, these drill bits excel in hard materials like steel, stainless steel, and cast iron. The cobalt alloy provides exceptional hardness and wear resistance, ensuring long bit life and reduced breakage. The straw/brown finish provides a smooth cutting action and minimizes friction. Suitable for use in various industries, including manufacturing, construction, and automotive, these drill bits are ideal for heavy-duty drilling, tapping, and reaming operations. Their durability and performance make them a valuable addition to any professional's toolbox.
Top product features:
- 15PC 135 Degree Heavy-Duty Cobalt Jobber Length Drill Set includes 15 drill bits
- Drill bits have a 135 degree point angle for improved drilling performance
- Drill bits are made with machining cobalt for increased hardness and durability
Top product applications:
- General Machining
- Heavy-Duty Drilling
- Automotive Repair
The CHICAGO-LATROBE 47795 is a jobber-length drill bit set consisting of 15 cobalt drill bits intended for drilling applications using aluminum, cast iron, stainless steel, and steel (as applicable to the specified bit size and material). This set includes fractional inch sizes ranging from 1/16" to 1/2", covering standard drilling needs. The bits feature a 135° P3 split point (see ‘point angle’ and ‘P3 split point type’ specifications) and are supplied in a metal drill index for organized storage.
Key Features:
- - Drill bit sizes included: 1/16", 3/32", 1/8", 5/32", 3/16", 7/32", 1/4", 9/32", 5/16", 11/32", 3/8", 13/32", 7/16", 15/32", 1/2".
- - Jobber-length overall lengths vary from 1 7/8" up to 6".
- - Material: cobalt.
- - Two-flute spiral design with right-hand cutting direction and helix angles between 21° to 34°.
- - Straight shank type with a shank diameter of 1/6".
- - Point angle: 135 degrees with P3 split point type to reduce walking and improve centering.
- - Fractional inch measurement system for compatibility with standard fractional drill bit holders.
- - Includes metal index case for bit storage and organization.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.20
- Package Width: 1.30
- Package Height: 8.10
- Package Weight: 2.10
