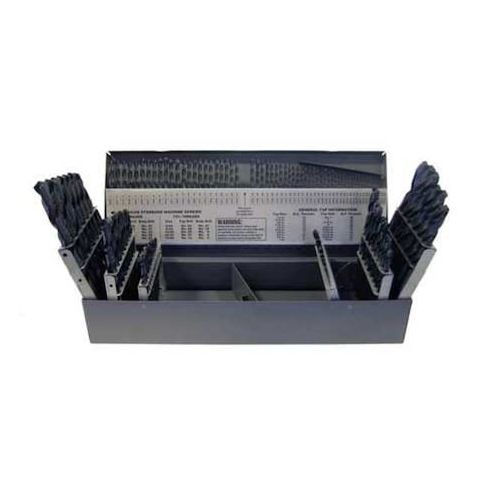

114PC 118 Deg General Purpose Jobber Length Drill Set CL 150 Oxide HSS 1/16-1/2, No 1-No 60, 1mm-13mm MPN:57726

The CHICAGO-LATROBE 57726 is a jobber length drill bit set consisting of 114 high-speed steel bits with conventional points. It includes fractional inch, metric, and wire sizes ranging from #60 (1 mm, 1/16 in) up to #1 (13 mm, 1/2 in). The set features two-flute spiral bits with right-hand cutting direction and a black oxide finish. It is intended for drilling cast iron and steel materials corresponding to ISO codes K and P.

Key Features:

• - Number of pieces: 114 drill bits covering a wide range of sizes from 1/16 in to 1/2 in (1 mm to 13 mm).
• - Drill bit material: High speed steel, general purpose grade.
• - Point angle: 118 degrees with conventional point type.
• - Flute type: Two-flute spiral with helix angles between 21° and 34° and right-hand spiral direction.
• - Shank type: Straight shanks with diameters corresponding to drill bit sizes.
• - Overall lengths vary from 1 3/8 in up to 6 in depending on drill size.
• - Measurement systems included: Fractional inch, metric, and wire gauge.
• - Meets the applicable requirements of ASME B94.11M-1993 and DIN 338.
