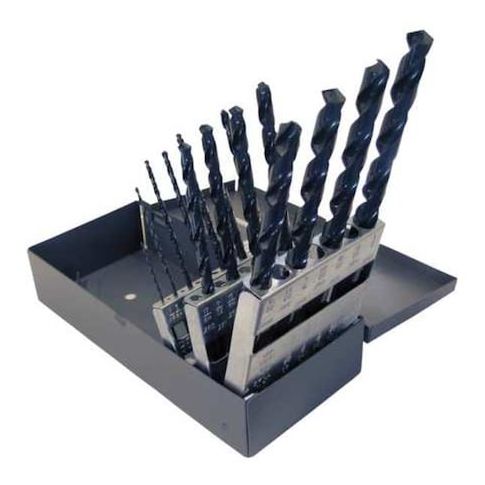

15PC 118 Degree General Purpose Taper Length Drill Set Chicago-Latrobe 120 Steam Oxide HSS 1/16-1/2x1/32 MPN:69884
Free Shipping
In Stock
Take your drilling to the next level with the Chicago-Latrobe 15PC 118 Degree General Purpose Taper Length Drill Set. This high-speed steel (HSS) drill set features 15 precision-crafted bits with a 118-degree point angle, ideal for general-purpose drilling in wood, metal, and other materials. The black oxide finish provides added durability and resistance to corrosion. With a 4:1 depth-to-diameter ratio, these drill bits deliver efficient, accurate results in a variety of applications, including woodworking, metalworking, and DIY projects. Whether you're a professional or a hobbyist, this drill set is a versatile and reliable addition to your toolkit.
Top product features:
- The drill bit set includes 15 pieces.
- The drill bits have a 118 degree point angle.
- The drill bits are made from high speed steel.
Top product applications:
- General Purpose Drilling for Wood and Plastic
- Heavy Duty Drilling for Steel and Iron
- Precision Drilling for Automotive and Aerospace
The CHICAGO-LATROBE 69884 is a taper-length drill bit set consisting of 15 pieces with sizes ranging from 1/16 inch to 1/2 inch in fractional inch measurements. These high speed steel bits with straight shank and two-flute spiral design are intended for drilling operations in cast iron and steel materials. The drill bits have a conventional 118-degree point angle, a black oxide finish, and are rated for right-hand cutting
- maximum drilling depth varies by bit size class within the specified depth-to-diameter ratio (4xD).
Key Features:
- - Set includes 15 drill bits with sizes incrementally included from 1/16" to 1/2" by 32nds.
- - High speed steel material with general-purpose grade suitable for machining cast iron and steel (ISO codes K, P).
- - Maximum depth of cut is based on the specified taper-length class and depth-to-diameter ratio (4xD).
- - Two-flute spiral design with a helix angle of 28 degrees for chip evacuation.
- - Black oxide finish applied to the cutting surface.
- - Drill diameter tolerance ranges from +0.0000 in / -0.0005 in to +0.0000 in / -0.0010 in.
- - Right-hand thread direction and does not include coolant through the flutes
- use external coolant when required for the drilling operation.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.00
- Package Width: 7.40
- Package Height: 2.40
- Package Weight: 3.35
