16PC 1/2 Reduced Shank Silver & Deming Drill Set Chicago-Latrobe 190 Steam Oxide HSS 17/32-1in MPN:69890

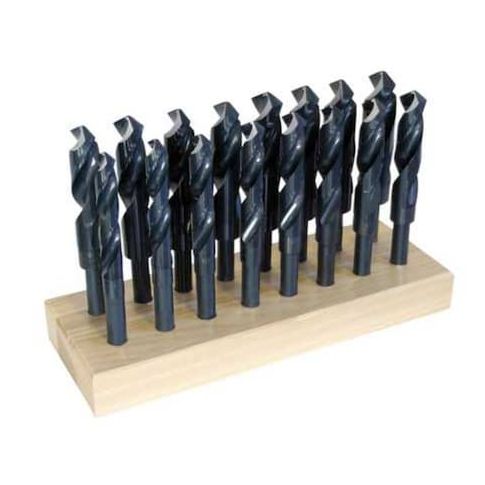

• The CHICAGO-LATROBE 69890 is a reduced shank drill bit set composed of 16 pieces with sizes ranging from 17/32 inch up to 1 inch in fractional increments. These drill bits are made of high speed steel with a black oxide finish and feature a straight shank with a diameter of 1/2 inch. Each bit has a conventional point type with a 118-degree point angle and two spiral flutes designed to cut in a right-hand direction. The overall length of each bit is 6 inches, with a flute length of 3 1/8 inches, and a flute helix angle between 30 and 34 degrees. This set is supplied in a wood block case with a plastic pouch and is intended for use in drilling applications using external coolant application as needed

• this bit is not designed with coolant fed through the bit.

  Key Features:


  • - Drill bit sizes included: 17/32", 9/16", 19/32", 5/8", 21/32", 11/16", 23/32", 3/4", 25/32", 13/16", 27/32", 7/8", 29/32", 15/16", 31/32", and 1".
  • - High speed steel drill bits for general drilling applications (refer to material-compatibility guidance for the specific material being drilled) with a black oxide finish.
  • - Reduced shank design with 1/2" straight shank diameter to fit smaller chucks for use with reduced shank designs having a 1/2 inch straight shank diameter.
  • - Two-flute spiral design with flute helix angles from 30° to 34°, cut direction is right hand.
  • - Point type is conventional, 118° angle for general purpose drilling.
  • - Overall length of 6 inches and flute length of 3 1/8 inches with a depth-to-diameter ratio of 4:1.
  • - Non-coolant through design requiring external coolant application as needed.
  • - Supplied in a wood block case including a plastic pouch for storage and organization.
