60PC 135 Deg HD Cobalt Screw Machine Lngth Drill Set Chicago-Latrobe 559 Straw HSS-CO 8%, N1-No 60 MPN:69854
Free Shipping
In Stock
This 60-piece drill set is designed for precision and versatility, featuring 135-degree cobalt drill bits with a straw point angle. Ideal for screw machine applications, it provides a high level of accuracy and durability. The set includes a wide range of sizes, from #1 to #60, making it suitable for various industries such as aerospace, automotive, and manufacturing. The cobalt alloy construction ensures resistance to wear and heat, while the split point design facilitates easy starting and reduces risk of walking. This drill set is perfect for professionals and hobbyists alike who require a reliable and high-performance tool.
Top product features:
- 60PC 135 Deg HD Cobalt Screw Machine Length Drill Set includes 60 drill bits
- The drill bit point angle is 135 degrees
- The drill bits are made of cobalt alloy
Top product applications:
- Machining small parts and components
- Making precision holes in metal
- Drilling holes in high-hardness materials such as stainless steel and titanium

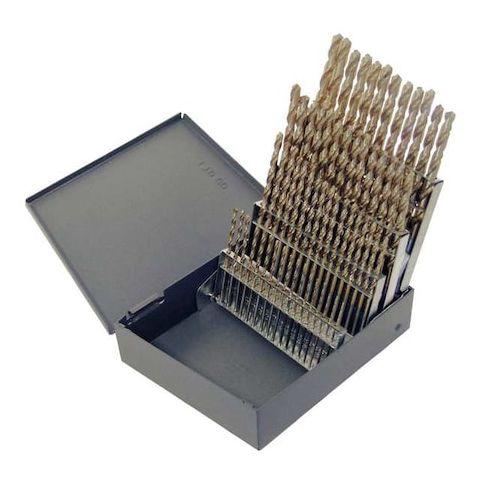

The CHICAGO-LATROBE 69854 Screw Machine Drill Bit Set includes 60 cobalt steel drill bits sized from #60 to #1, intended for drilling applications using the specified drill bit size range
- suitability for a given material depends on application parameters. The bits have a screw-machine length and a split point tip angled at 135 degrees, suitable for right-hand cutting. This set comes housed in a metal index case and shank type is straight for use with compatible chucks per the chuck’s specifications. These drill bits are intended for general machining and drilling use in screw-machine applications and not specified for coolant-through use.
Key Features:
- - Drill Bit Material: Cobalt steel with heavy-duty grade
- - Sizes Included: 60 pieces ranging from #60 (smallest) to #1 (largest)
- - Point Type: Split point with a 135-degree angle for precision drilling
- - Flutes: Two spiral flutes with helix angles between 21° and 34°
- - Shank Type: Straight
- - Drill Length: Screw-machine length class
- - Cutting Direction: Right hand
- - Depth to Diameter Ratio: 4 times diameter (4xD)
- - Finish: Straw colored machining finish
- - Case: Metal drill index included for organization and storage
- - Standards: Not rated
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 3.50
- Package Height: 1.30
- Package Weight: 1.09
