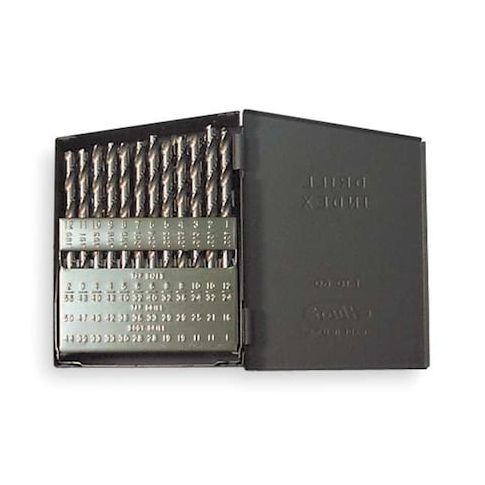

60PC 118 Degree General Purpose Jobber Lengh Drill Set Chicago-Latrobe 150D Bright HSS No 1-No 60 MPN:49916

• The CHICAGO-LATROBE 49916 is a jobber length drill bit set consisting of 60 high speed steel bits suitable for machining operations on the specified materials and applications. The set covers a size range from #60 to #1 and features a conventional 118-degree point angle with a right hand spiral direction. It is manufactured to be compatible with drilling aluminum, cast iron, and steel in the specified applications/material codes (ISO codes K, N, and P). The bits have straight shanks for fit with standard drill chucks.

  Key Features:


  • - Includes 60 drill bits ranging in size from #60 (smallest) to #1 (largest).
  • - Jobber length style
  • overall length range: 1 5/8 inches to 3 7/8 inches.
  • - Constructed from high speed steel (HSS) for general machining use.
  • - Features a conventional 118-degree point angle and two-flute spiral design.
  • - Spiral direction is right hand with helix angles between 21° and 34°.
  • - Straight shank for fit with standard drill chucks.
  • - Includes a metal drill index case.
  • - Meets ASME B94.11M-1993 standards.
