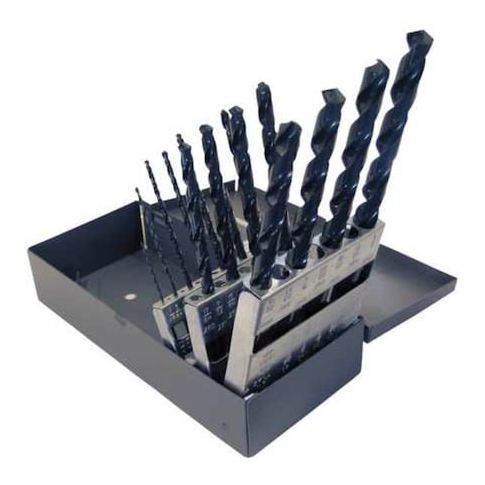

16PC 49/64-1IN HSS 118 Degree General Purpose Taper Shank Drill Set Chicago-Latrobe 110 Steam Oxide MPN:69867

• The product includes 16 taper shank drill bits made from high speed steel and designed for drilling workpieces made of carbon steel, tool steel, alloy steel, and cast iron. The drill bits have a point type: general purpose and feature spiral flute direction: right-hand

• point angle: 118 degrees. The bit size range for fractional inch sizes: 49/64" to 1". The bits utilize shank type: Morse Taper #2 (for use with compatible taper shank drilling equipment).

  Key Features:


  • - Number of drill bits: 16
  • - Bit size range for fractional inch sizes: 49/64" to 1"
  • - Material: High Speed Steel, general purpose grade
  • - Shank type: Morse Taper #2 (for use with compatible taper shank drilling equipment)
  • - Point angle: 118 degrees, conventional point type
  • - Spiral flute direction: right-hand
  • 2 flutes
  • right-hand cutting direction
  • - Depth-to-diameter ratio: 4x diameter
  • - Black oxide finish for machining
  • - Helix angle: 21 to 34 degrees
  • - Drill bit case type: Metal
