Mixing Valve, 4.6 gpm, 3-1/2" H, 4-7/8" W MPN:131-FMAB
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2757032

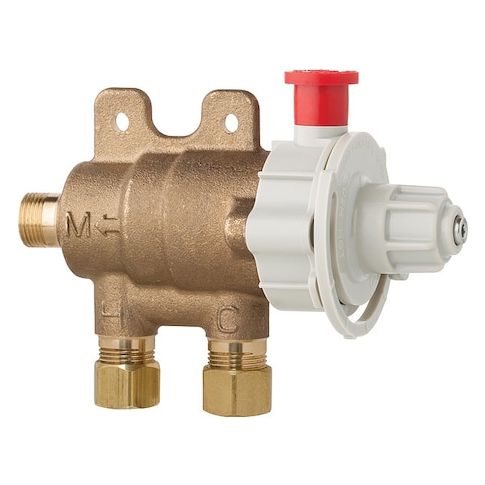

Mixing Valve, 4.6 gpm, 3-1/2" H, 4-7/8" W
The Chicago Faucet Thermostatic Mixing Valve is a reliable and efficient solution for temperature control in lavatory applications. This compact valve combines hot and cold water streams to deliver a consistent and safe temperature, ideal for residential and commercial use. Its brass body and compression inlet and outlet connections ensure durability and ease of installation. With a flow rate of 4.6 gpm and temperature range of 100°F to 180°F, this valve meets the standards of ASME A112.1070, ASSE 1070, and CSA B125.70, making it a trusted choice for plumbers and building managers.
Top product features:
- Thermostatic Mixing Valve maintains a consistent water temperature between 100 and 180 degrees F.
- Mixes hot and cold water to produce a safe and comfortable water temperature.
- Has a flow rate of 4.6 gallons per minute.
Top product applications:
- Lavatories
- Washbasins
- Shower Systems
Thermostatic Mixing Valve, Body Material Brass, Flow Rate 4.6 gpm, Inlet Type Compression, Outlet Type Compression, Inlet Size 3/8 in, Outlet Size 3/8 in, Temp. Range 100 Degrees to 180 Degrees F, Max. Pressure 125 psi, Overall Height 3 1/2 in, Overall Width 4 7/8 in, Inlet Temperature (Cold) 39 Degrees to 80 Degrees F, Inlet Temperature (Hot) 120 Degrees to 180 Degrees F, For Use With Lavatories, Includes Wall Mounting Bracket, Standards ASME A112.1070, ASSE 1070, CSA B125.70, NSF/ANSI 61
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.70
- Package Width: 4.90
- Package Height: 4.10
- Package Weight: 1.10
Product info last updated on February 12, 2026 2:16pm UTC
Category: Pipes, Valves and Fittings
