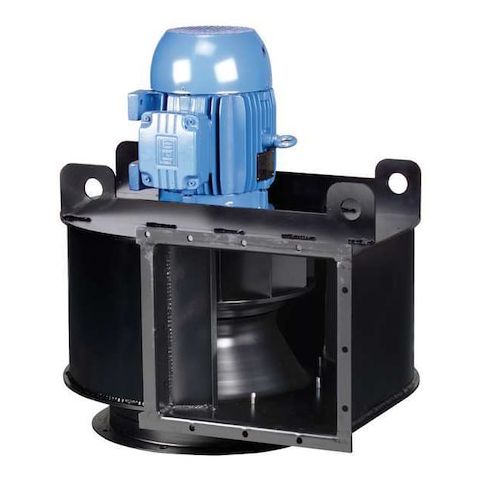

High Pressure Blower, 3 Phase, 15 HP MPN:182-15HP
This high-pressure blower from Chicago Blower is designed for demanding applications that require continuous air movement under elevated static pressure conditions. Its backward-inclined wheel design and steel housing ensure efficient operation and durability. With a 15 HP three-phase motor, it can handle airflow values of up to 7,610 cfm and operate up to 13.00 in static pressure. Suitable for use in industrial settings, such as factories, warehouses, and power plants, this blower provides reliable performance and is ideal for applications like material handling, ventilation, and dust collection. Its compact design and moderate sound level make it a versatile solution for various industries.
Top product features:
- High pressure backward-inclined centrifugal blower design for efficient air movement under elevated static pressure conditions.
- Blower operates within defined airflow, speed, temperature, and electrical limits for reliable performance.
- Regreasable ball bearing configuration for smooth and durable operation.
Top product applications:
- HVAC Systems: The high pressure blower is suitable for use in HVAC systems to provide continuous air movement under elevated static pressure conditions.
- Industrial Ventilation: This product can be used in industrial ventilation systems to remove dust, fumes, and other airborne contaminants from manufacturing facilities and other industrial environments.
- Power Plant Applications: The high pressure blower can be used in power plant applications to provide air for cooling systems, combustion air for boilers, and other industrial processes.
This item is a high pressure blower with a backward-inclined wheel design and a steel housing. It is powered by a three-phase electric motor and operates within defined airflow, speed, temperature, and electrical limits. The blower uses a single inlet and rectangular outlet with flanged connections and is configured for continuous air movement under elevated static pressure conditions.
Key Features:
- Blower Type: High pressure backward-inclined centrifugal blower.
- Motor Specifications: 15 hp, three-phase motor operating at up to 3,600 RPM on 230/460V AC, 60 Hz power.
- Airflow Performance: Airflow values specified from approximately 4,800 to 7,610 cfm depending on static pressure.
- Pressure Capability: Performance data provided for operation up to 13.00 in static pressure.
- Construction: Steel housing with enamel finish and steel backward-inclined wheel.
- Bearings: Regreasable ball bearing configuration.
- Temperature Ratings: Maximum inlet air temperature specified at 150°F and maximum ambient temperature at 120°F.
- Sound Level: Sound level specified at 97 dBA measured at 5 ft.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 23 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 40.00
- Package Width: 48.00
- Package Height: 43.00
- Package Weight: 609.00
